BD-D4294-03 New X-ray Fluorescence Oil Sulfur Analyzers
Price:
Negotiable
MOQ:
1 set
Delivery Time:
5~8 working days
Brand:
SHUOBODA
Product Description
BD-D4294-03 New X-ray Fluorescence Oil Sulfur Analyzers
Automatic tests sulfur content rate in liquid oil or thin powder reach up to 7ppm the fastest in 30 seconds.
Product Overview
BD-D4294-03 X-ray Fluorescence Sulfur in Oil Analyzer instrument is specially designed to determine sulfur content in petroleum products. Adopting energy-dispersive principle with integrated design, it provides rapid and accurate measurements that meet the requirements of National Standard GB/T 17040, GB/T 11140, and ASTM D4294-03 for repeatability and reproducibility.
Environmental pollution is attracting increasing government and public concern. The key contributors to atmospheric destruction are CO2 and SO2 emissions from fuel combustion. Lowering sulfur content in gasoline, diesel oil, and heavy oils used in vehicles, ships, and airplanes significantly reduces atmospheric pollution. SO2 can also cause catalyst poisoning in petrochemical industry and form acid rain.
Applicable Standards
GB/T 17040, GB/T 11140, ASTM D 4294-03
Applications
- Mass percentage of total sulfur in crude petroleum, petroleum, heavy oil, diesel oil, gasoline, and naphtha
- Total sulfur content in coal chemical industry products, such as primary benzene
- Total sulfur or sulfide in other liquid or solid powder samples
Key Features
- Electromechanical integration with microprocessor control and 8-inch IPS capacitive touch screen
- Rapid analysis in 30 seconds with minimal standard sample requirement
- Automatic temperature, pressure, and carbon/hydrogen ratio correction using fluorescence intensity ratio analysis
- Self-diagnostic function for monitoring working state and electrical parameters
- Disposable sample cell with Mylar film to prevent cross contamination
- Automatic working curve selection and peak stabilization
- Precisely located sample holder with external access for convenient maintenance
- Extensive data storage: 4096 content analysis results and 8192 count measurement data
- Selectable measurement units (m/m % or ppm)
- Thermal printer with easy paper replacement
- RS232 serial port for data upload to computer or web system
- Safe X-ray protection measures
Main Unit and Accessories
(1) Sample cell (2) Leakage protection device (3) Base of pressure shaping device (4) Cover of pressure shaping device (5) Cell film
New vs Old Model Comparison
| Feature | BD-D4294-03 New | BD-D4294-03 Old |
|---|---|---|

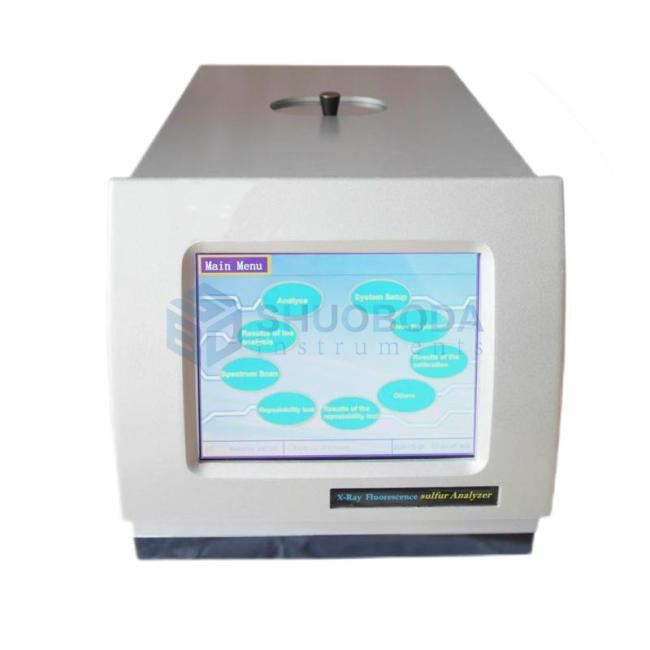

| Appearance |  |
 |
| Dimension | 430 × 260 × 260mm | 468 × 368 × 136mm |
| Weight | 11 Kg | 13 Kg |
| Display | 8-inch wide viewing angle capacitive touch screen | Monochromatic screen |
| Keyboard | Capacitive touch screen | PVC panel keypad |
| Software Interface | Smart, simple, easy to learn | -------------------- |
| Working Curve Selection | Automatically choose | Operator selection |
| Working Curves | 10 working curves | 9 working curves |
| Data Storage | 4096 content data | 1000 content data |
| Analysis Range | S % max - S % min ≤ 6% | S % max - S % min ≤ 5% |
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | 7 ppm to 6% |
| Precision | Repeatability: <0.02894 (X+0.1691); Reproducibility: <0.1215 (X+0.05555) |
| Sample Quantity | 2 to 3 ml (sample depth of 3 mm to 4 mm) |
| Measurement Time | 30, 60, 120, 150s at random; automatic single sample determination |
| Calibration Curves | 10 calibration curves (5 linear equations, 5 binomial parabola) |
| Working Conditions | Temperature: 5 to 40 °C; Relative humidity: ≤85% (30 °C) |
| Power Supply | AC 220V±20V, 50 Hz |
| Rated Power | 50 W |
| Size and Weight | 260mm × 460mm × 260mm; NW/GW: 11/16 kg |
Packing List
| Item Name | Quantity |
|---|---|
| Main unit | 1 set |
| Power supply wire | 1 piece |
| Sample cell (three parts) | 200 pcs |
| Sample cell film (6μm Mylar) | 200 pieces in two boxes |
| Leakage protection device (two parts) | 1 set |
| Multifunctional pressure shaping device (two parts) | 1 set |
| Printing paper (57 mm width; Φ30mm) | 3 rolls |
