Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter

Price Negotiable
Price: 100
MOQ: Negotiable
Delivery Time: Negotiable
Brand: XioFiTec/Hanyan
Product Description

HF-300W robotic stainless steel  titanium alloy floating balls flow meter TIG welding machine

Model

HF-300WS

Control power supply

Single phase 50Hz AC 200V

Welding power supply

Three phase 50Hz AC 380V

Workpiece thickness

According to the form of opening

Workpiece diameter

200 mm≥φ≥10mm

Workpiece length

≤1200mm

Headstock rotating speed

1~10 r/ min

Workpiece rotation diameter

≤550mm

Spindle bore

φ≤50mm

Spindle output torque

≤72N·m

Workpiece weight

≤50Kg

Torch lifting height

100mm(pneumatic)

Tailstock slide stock

150mm(pneumatic)

Headstock adjustable angle

0°,30°,45°,60°,90°

Torch 3-D adjustable range

X:±30mm, Y:±50mm, Z:±30mm

Max. welding current

500A

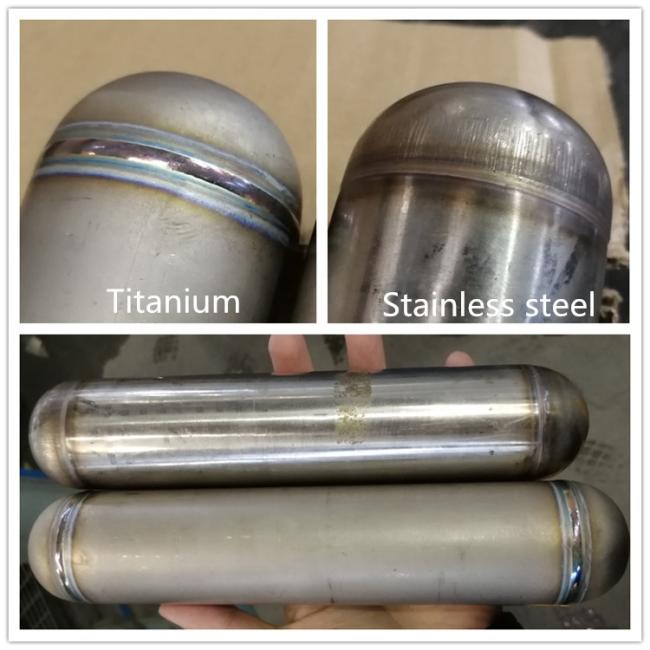

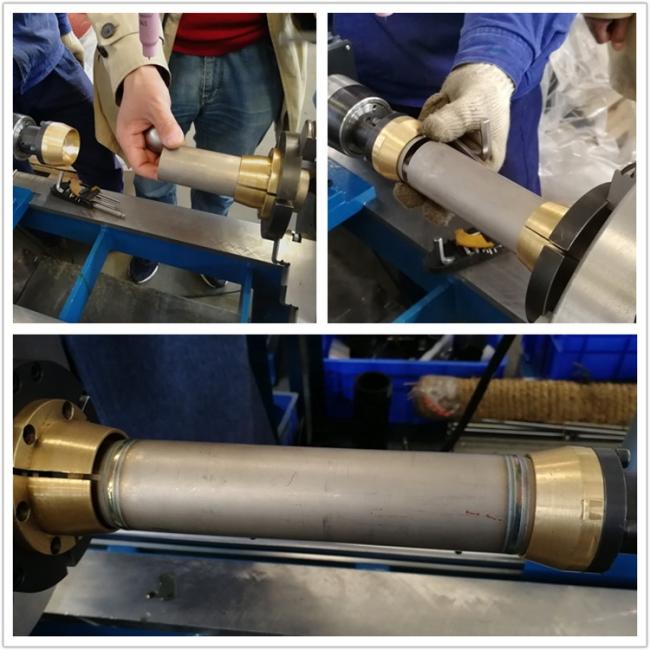

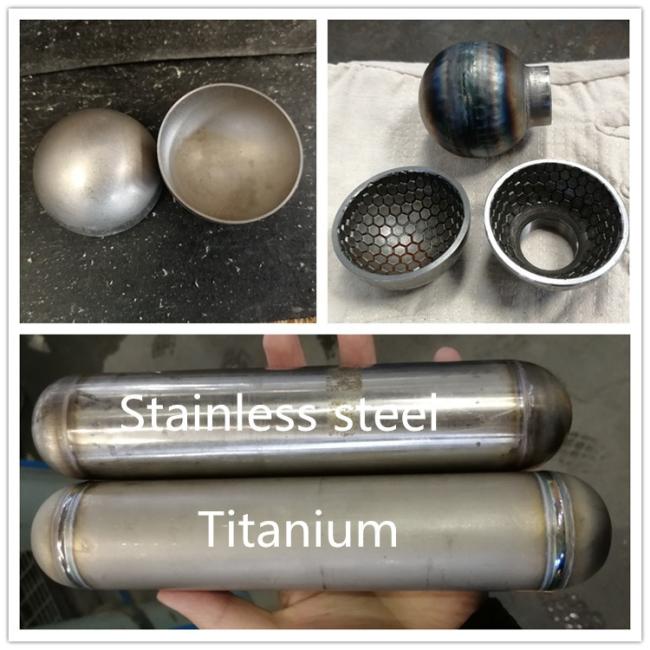

Application



Package



Visit

In user factory:

    1. Before sales: on site techinical solution and quotation.

    2. after sales: installation, commisionning, training.



In our factory:



Company Information

        Chengdu Hanyan Technology Co., Ltd. Is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.


        From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.

        We exported to over 29 countries and regions including General Longitudinal Seam Welder, Circumferential Seam Welder, Welding Oscillator, Welding TIG Wire Feeder, Welding Seam Tracker, Water Heater Welding Production Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.



About us

Chengdu Hanyan Technology Co., LTD. is a national high-tech enterprise specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment.



With 360 employees, including 159 who have been devoting into welding area for over 15 years, we are serving customers worldwide with dozens of various types of precision equipment and a factory covering an area of 15000sqm. To establish modern management, we customized an ERP system which could ensure punctual delivery and offer process surveillance. We have accomplished more than 20 patents in automatic welding industry.  We are capable of providing 4000 units specialized welding equipment annually.
