SEXGL Heavy-Duty Rod End Bearings: Precision Angular Motion Solutions for Harsh Industrial Environments
SEXGL rod end bearings deliver robust articulation and load-bearing performance in demanding automation systems, trusted by global partners like BYD (suspension test rigs) and BOE (robotic arm joints) across North America, Europe, Southeast Asia, and South Korea. Engineered for extreme durability and precise angular movement, our bearings excel in applications requiring both rotational freedom and high load capacity.
Company Advantage
OEM factory, High quality, Precision processing, Pipelining assembly, 100% QC process, Plentiful stocks, Fast and Safe shipping.

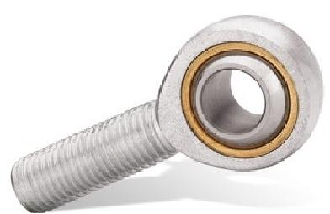

Details for Ball Joint Rod End Bearing
This Ball Joint Rod End Bearing is suitable for transferring motion between widely separated points. This bearing's female / male shank is made of chrome steel for durability and resistance to deformity under heavy loads. The bearing has a zerk type grease fitting for lubrication in place. This bearing has a bronze race and hardened, chrome-plated steel ball for strength and resistance to wear and corrosion.
| Rod body with left or right-hand male thread | |||||||||||||||
| Sliding contact surface:steel/PTFE | |||||||||||||||
| Model Number |
Dimensions(mm) | Load ratings (KN) |
Weight (Kg) |
||||||||||||

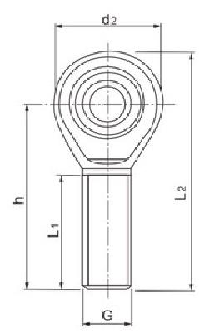

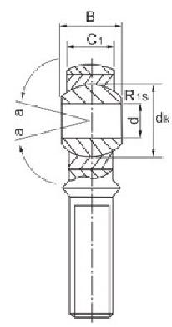

| d | B | d2 | L7 | h | L2 | dk | R1s | a | Dynamic Capactity |
Static Capactity |
|||||
| SA5 T/K | 5 M5×0.8 | 8 | 6 | 19 | 18 | 33 | 42 | 11.11 | 0.3 | 13 | 5.70 | 6.00 | 0.013 | ||
| SA6 T/K | 6 M6×1.0 | 9 | 7 | 21 | 20 | 36 | 46 | 12.70 | 0.3 | 13 | 7.20 | 7.65 | 0.020 | ||
| SA8 T/K | 8 M8×1.25 | 12 | 9 | 25 | 24 | 42 | 54 | 15.875 | 0.3 | 14 | 11.6 | 12.9 | 0.038 | ||
| SA10 T/K | 10 M10×1.5 | 14 | 10.5 | 28 | 28 | 48 | 62 | 19.05 | 0.3 | 13 | 14.5 | 18.0 | 0.055 | ||
| SA12 T/K | 12 M12×1.75 | 16 | 12 | 32 | 32 | 54 | 70 | 22.225 | 0.3 | 13 | 17.0 | 24.0 | 0.085 | ||
| SA14 T/K | 14 M14×2.0 | 19 | 13.5 | 36 | 38 | 18 | 60 | 78 | 25.40 | 0.3 | 16 | 24.0 | 31.0 | 0.14 | |
| SA16 T/K | 16 M16×2.0 | 21 | 15 | 37 | 40 | 21 | 66 | 87 | 28.575 | 0.3 | 15 | 28.5 | 39.0 | 0.21 | |
| SA18 T/K | 18 M18×1.5 | 23 | 16.5 | 41 | 46 | 22 | 72 | 94 | 31.75 | 0.3 | 15 | 42.5 | 47.5 | 0.28 | |
| SA20 T/K | 20 M20×1.5 | 25 | 18 | 45 | 50 | 25 | 78 | 103 | 34.925 | 0.3 | 14 | 42.5 | 57.0 | 0.38 | |
| SA22 T/K | 22 M22×1.5 | 28 | 20 | 48 | 54 | 27 | 84 | 111 | 38.10 | 0.3 | 15 | 57.0 | 68.0 | 0.48 | |
| SA25 T/K | 25 M24×2.0 | 31 | 22 | 55 | 60 | 30 | 94 | 124 | 42.85 | 0.3 | 15 | 68.0 | 85.0 | 0.64 | |
| SA28 T/K | 28 M27×2.0 | 35 | 24 | 62 | 66 | 33 | 103 | 136 | 47.60 | 0.3 | 15 | 86.0 | 107.0 | 0.80 | |
| SA30 T/K | 30 M30×2.0 | 37 | 25 | 66 | 70 | 35 | 110 | 145 | 50.80 | 0.3 | 17 | 88.0 | 114.0 | 1.10 | |
| SA35 T/K | 35 M36×2.0 | 43 | 28 | 85 | 81 | 41 | 140 | 180.5 | 57.10 | 0.3 | 16 | 101.0 | 206.0 | 1.64 | |
| SA40 T/K | 40 M42×2.0 | 49 | 33 | 90 | 91 | 46 | 150 | 195.5 | 66.60 | 0.3 | 17 | 124.0 | 280.0 | 2.30 | |
| SA50 T/K | 50 M48×2.0 | 60 | 45 | 105 | 117 | 59 | 185 | 243.5 | 82.50 | 0.3 | 12 | 308.0 | 485.0 | 4.80 | |
