PHSA Stainless Steel Rod Ends Corrosion Resistant Ball Bearing Rod Ends Customized
PHSA Stainless Steel Rod Ends Corrosion Resistant Ball Bearing Rod Ends Customized
SEXGL Rod End Bearing:Can bear radial load, axial load or combined load of radial and axial simultaneously
Strong load-bearing capacity: The spherical sliding contact area is large, and most of them have also adopted special process treatment methods, such as surface phosphating, galvanizing, chrome plating, etc., so they have greater load capacity and impact resistance.
High flexibility: allows free rotation and swing in multiple directions, and can adapt to various complex working environments and motion trajectories.
Adapt to harsh environment: It has the characteristics of corrosion resistance and wear resistance. It can work normally even if it is installed misaligned. It can work stably for a long time in humid and corrosive environment.
Company advantages
OEM factory, high quality, precision processing, assembly line assembly, 100% quality control process, sufficient inventory, fast and safe transportation.

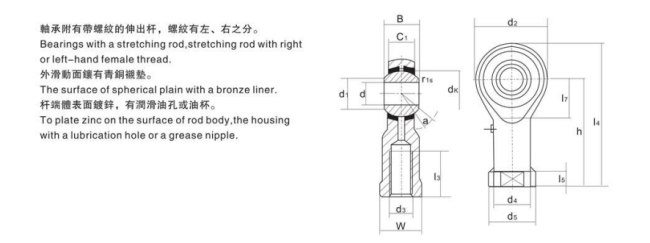

sheet
| model Type | d | d2 | W | B | C1 | h | d2 | l1 | l5 | d4 | d5 | dk | l3 | a* | quantity | Weight (kg) |
| PHSA 3 | 3 | M3×0.5 | 5.5 | 6 | 4.5 | 21 | 12 | 27 | - | 6 | 6.5 | - | 10 | - | 1.8 | 0.006 |
| PHSA 4 | 4 | M4×0.7 | 8 | 7 | 5.3 | 24 | 14 | 31 | - | 7.8 | 9.5 | - | 12 | - | 3.234 | 0.009 |
| PHSA 5 | 5 | M5×0.8 | 9 | 8 | 6 | 27 | 18 | 36 | 4 | 8.5 | 12 | 11.1 | 8 | 13 | 3.25 | 0.016 |
| PHSA 6 | 6 | M6×1 | 11 | 9 | 6.75 | 30 | 20 | 40 | 5 | 10 | 13 | 12.7 | 9 | 13 | 4.3 | 0.022 |
| PHSA 8 | 8 | M8×1.25 | 14 | 12 | 9 | 36 | 24 | 48 | 5 | 12.5 | 16 | 15.875 | 12 | 14 | 7.2 | 0.047 |
| PHSA 10 | 10 | M10×1.5 | 17 | 14 | 10.5 | 43 | 28 | 57 | 6.5 | 15 | 19 | 19.05 | 15 | 13 | 10 | 0.077 |
| PHSA 12 | 12 | M12×1.75 | 19 | 16 | 12 | 50 | 32 | 66 | 6.5 | 17.5 | 22 | 22.225 | 18 | 13 | 13.4 | 0.1 |
| PHSA 14 | 14 | M14×2 | 22 | 19 | 13.5 | 57 | 36 | 75 | 8 | 20 | 26 | 25.4 | 21 | 16 | 17 | 0.16 |
| PHSA 16 | 16 | M16×2 | 24 | 21 | 15 | 64 | 40 | 84 | 8 | 22 | 28 | 28.575 | 24 | 15 | 21.6 | 0.22 |
| PHSA 18 | 18 | M18×1.5 | 27 | 23 | 16.5 | 71 | 44 | 93 | 10 | 25 | 31 | 31.7 | 27 | 15 | 26 | 0.32 |
| PHSA 20 | 20 | M20×1.5 | 30 | 25 | 18 | 77 | 48 | 101 | 10 | 27.5 | 35 | 34.925 | 30 | 14 | 31.5 | 0.42 |
| PHSA 22 | 22 | M22×1.5 | 32 | 28 | 20 | 84 | 54 | 111 | 12 | 30 | 38 | 38.1 | 32 | 15 | 38 | 0.54 |
| PHSA 25 | 25 | M24×2 | 36 | 31 | 22 | 94 | 60 | 124 | 12 | 33.5 | 42 | 42.85 | 36 | 15 | 47.5 | 0.72 |
| PHSA 28 | 28 | M27×2 | 41 | 35 | 24 | 103 | 66 | 136 | 14 | 37 | 46 | 47.6 | 41 | 15 | 55 | 0.82 |
| PHSA 30 | 30 | M30×2 | 46 | 37 | 25 | 110 | 70 | 145 | 15 | 40 | 50 | 50.8 | 45 | 17 | 64 | 1.1 |
