Lead-Free C6801 Circular 4.0mm Male Female Magnetic Connector For Shoes

Round type magnetic charger connector,plating 5U" Min Au over 60~100U"N for brass and plunger, the housing material is black HTN+30%GFUL94 V-0, the shell is brass C3602Plating Ni, the male and female magnetic connector is applied to shoes,heating the throw pillow, charging, etc.

Magnetic connector application description (not limited to the following):
1.Plug-in welding PCB board;
2. Forming and encapsulating after welding wires;
3.A transfer terminal of that PCBboard can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly

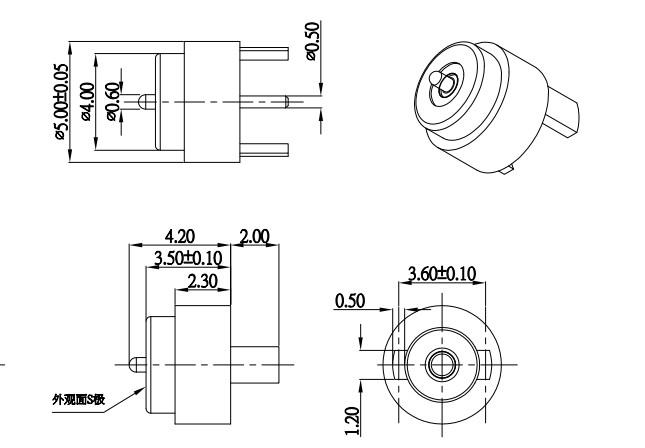

Male DC magnetic  connector spec:

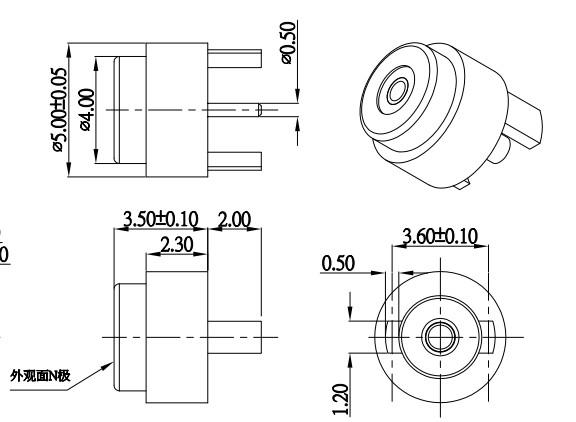

Female 2pin magnetic  connector spec:

Magnetic connector parameter list:

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

DC 2PIN Magnetic cable connector application:
