2.8mm Pitch PCB Right Angle 2pin Male & Female Magnetic Connector

DC 5A 12V charging magnet connector spring 2Pin charge power pogo pin use for LED, the magnetic connector is product anti-short-circuit structure design, high voltage AC1000V 0.5mA 3SEC / DC 1000V 0.5mA 3 SEC magnetic pogo pin connector, the manetic connector pin feet are fixed on the PCB board, and the pin spacing size is stable.
2pin male and female magnetic connector application explaination (not limited to the following):
1. The PCB board can be soldered with a plug-in;
2. Mold molding and injection molding;

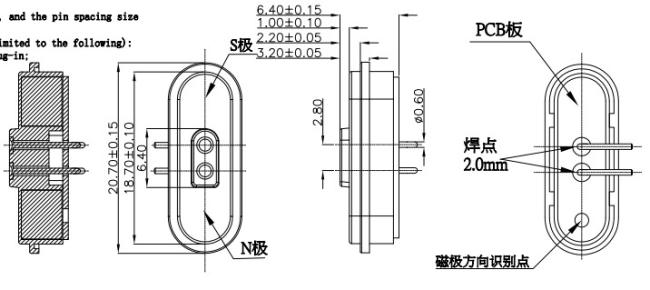

2pin right angle male magnetic  connector spec:

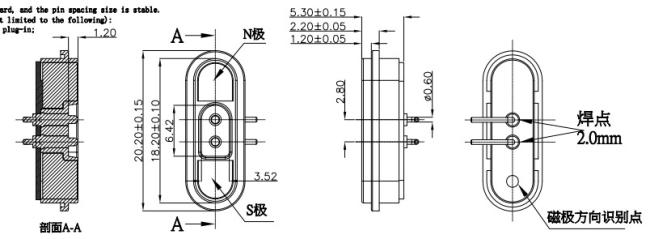

2pin right angle female magnetic  connector spec:

Magnetic connector parameter list:

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Magnetic connector application:

Why do customers choose UPE?

1. Professional customization service

2. Fast sample production capability

3. Strict quality control system

4. Processing with imported components

5. High-precision test equipment

6. Reasonable cost control procedures

7. Product environmental standards

Any question, please send to union@upetech.net
