4 Pin Magnetic Connectors Male And Female Magnetic Pogo Pin Connector

2.54mm Pitch 4 Pin Male & Female Magnetic Pogo Pin Connector

4pin horizontal pogo pin magnetic power connectors  for smart wear, 4pin 2.54 space smart watch magnetic charging connector,UPE focus on high current magnetic connector and magnetic cable pogo pin connector

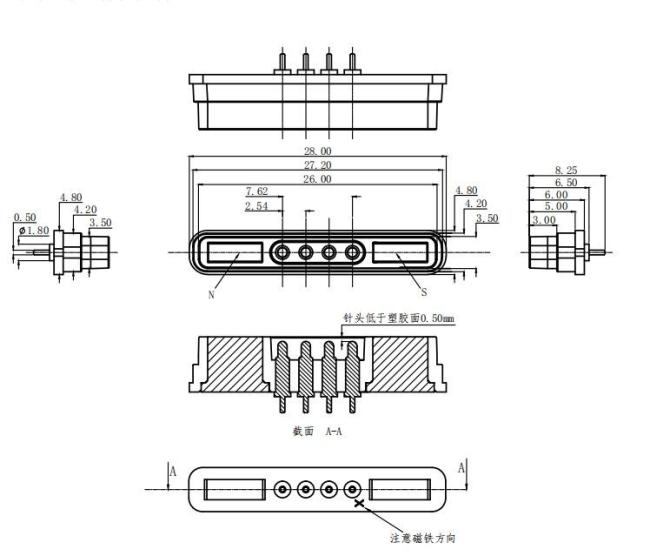

4pin male magnetic  connector spec:

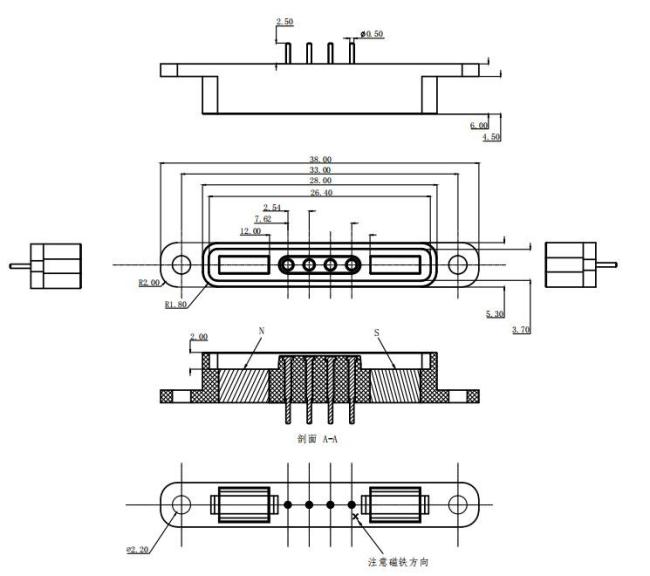

4pin female magnetic  connector spec:

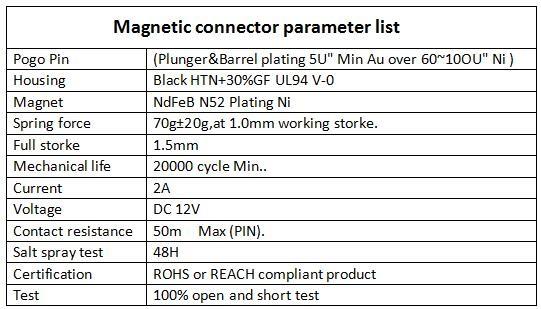

Magnetic connector parameter list:

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Magnetic connector application:

Why do customers choose UPE?

1. Professional customization service

2. Fast sample production capability

3. Strict quality control system

4. Processing with imported components

5. High-precision test equipment

6. Reasonable cost control procedures

7. Product environmental standards

Any question, please send to union@upetech.net
