5 Pin Magnetic Connectors 2.2mm Pitch Pogo Pin Connector Magnetic

5pin male female bending pogo pin magnetic connector with 2.2mm pitch

Here’s a detailed and professional product description for your 5-pin male/female right-angle pogo pin magnetic connector (2.2mm pitch).

5-Pin Right-Angle Pogo Pin Magnetic Connector (2.2mm Pitch)

✅ High-Performance Pogo Pins

• Gold-plated spring-loaded contacts (≥50,000 cycles)

• Low impedance (<30mΩ) for stable power/data transmission

•

✅ Strong NdFeB Magnet Array

• Neodymium iron boron (N35-N52 grade options)

• Customizable pull force (e.g., 1.5kgf~5kgf)

•

✅ Compact & Durable Design

• 2.2mm pitch for high-density PCB applications

• Right-angle (90°) bending for space-constrained designs

✅ Reliable Connectivity

• Supports [3A~5A] current per pin (customizable)

• Data transmission: USB 2.0/3.0, UART, I2C, etc.

Applications:

• Wearable devices (smartwatches, AR/VR headsets)

• Medical equipment (portable diagnostics)

• Industrial IoT (modular sensors, robotics)

• Consumer electronics (magnetic charging docks)

Why Choose UPE?

• Fast prototyping: 3-5 days for samples

• Cost-effective: Competitive MOQ pricing

• Quality assurance: 100% automated testing

• High-tech production with precision engineering

• Systematic quality control for consistent performance

5Pin Magnetic Connectors Parameter:

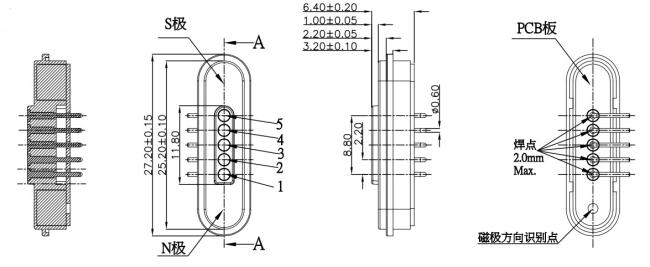

5Pin Male  Connector Technical Drawing (Key Dimensions):

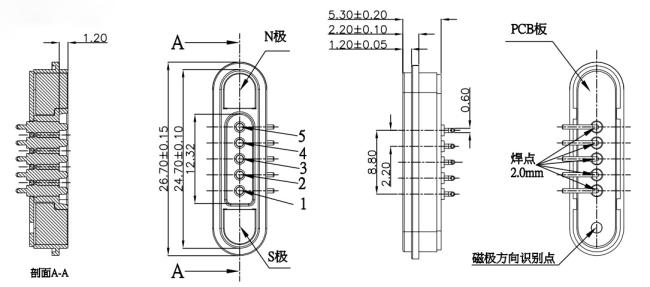

5Pin Female Magnetic Connector Technical Drawing (Key Dimensions):

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

How to place the order
* You send us drawing or sample

* Our professional engineering team conducts the assessment

* You confrim the drawing and we make the sample to send you

* You test the sample and approved,then place an order and pay 50% deposit

* We start to make the product

* When the goods is done, we take photoes for your check and you then pay the balance

* We deliver the products to you with DHL, TNT,UPS,Fedex

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Any question, please send to union@upetech.net
