12V 3A 5 Pin Magnetic Charging Cable 2.2mm Pitch Pogo Pin USB Connector With Data Sync
2.2mm pitch 5pins male magnetic charging cable connector with data sync(Gold-Plated Contacts, HTN Housing, NdFeB Magnet, TPE Jacket)
1. Key Features
.1-meter (1000mm) flexible cable with 4-core TPE insulation (OD: 3.5mm).
.Strong magnetic docking (>550G magnetic force) with polarity identification.
.12V/3A power delivery via gold-plated magnetic contacts.
.USB 2.0 data/power (stainless steel shell).
.High durability: 50,000+ mating cycles, flame-retardant (UL94 V-0).
2. Materials & Construction
| Component | Specification |
| Pogo pin | Brass , gold-plated surface (≤50mΩ contact resistance). |
| Plastic Housing | HTN + 30% UL94 V-0 black (high-temperature resistant). |
| Magnet | NdFeB permanent magnet (epoxy-coated option for salt spray resistance). |
| Outer Mold | Black TPE 80A (flexible, abrasion-resistant). |
| USB Connector | Stainless steel shell (USB 2.0). |
| Cable | 4-core, 1000mm long: - Red/Black: 65×0.08mm strands (power). - White/Green: 16×0.08mm strands (data). - Jacket: Black TPE. |
3. Mechanical & Electrical Properties
| Parameter | Value |
| Spring Force | 80g ± 20g @ 1.0mm height. |
| Magnetic Adhesion Force | >550G. |
| Service Life | 50,000 cycles min. |
| Rated Voltage | 12V DC. |
| Continuous Current | 3.0A. |
| Peak Current | 4.0A (max). |
| Contact Resistance | ≤50mΩ. |
| High-Voltage Test | AC/DC 1000V, 0.5mA, 3 sec. |
4. Environmental & Compliance
-
RoHS & REACH compliant.
-
Flame Rating: UL94 V-0.
-
Salt Spray Test: 48 hours (with epoxy-coated magnet).

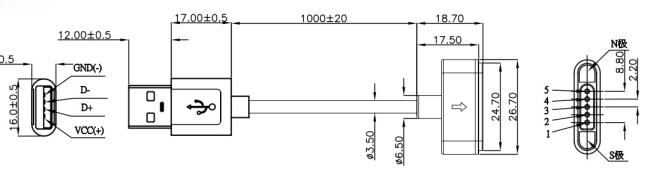

5Pin Male Cable Connector Technical Drawing (Key Dimensions):

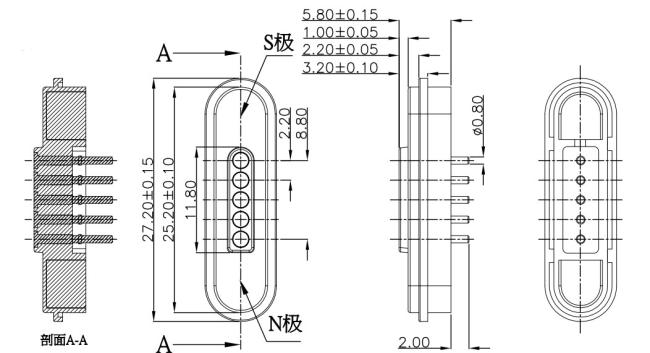

5Pin Female Magnetic Connector Technical Drawing (Key Dimensions):
Magnetic Cable Connectors Application:
