Right Angle Magnetic Connectors 6 Pin Magnetic Power Connectors 2.2mm Pitch For Robot

Right angle 6Pin male and female magnetic charging cable connector for robot,the female pin is plane

1. Key Features

.Neodymium (NdFeB) magnets with ≥600G holding force for application docking.

.Self-aligning design.

√Right-Angle 6-Pin Configuration

.Space-saving 90°PCB mount (soldering/SMT options).

.Pinout: 2x power (+12V/GND) + 2x data + 2x reserved (customizable).

√High Durability

.50,000+ mating cycles (spring-loaded gold-plated pins).

.IP67-rated option (dust/waterproof for industrial robots).

√Safety & Compliance

.Anti-spark design (low-voltage pre-charge pins).

.Short-circuit/overcurrent protection.

.RoHS, REACH, UL94 V-0 compliant.

2. Technical Specifications

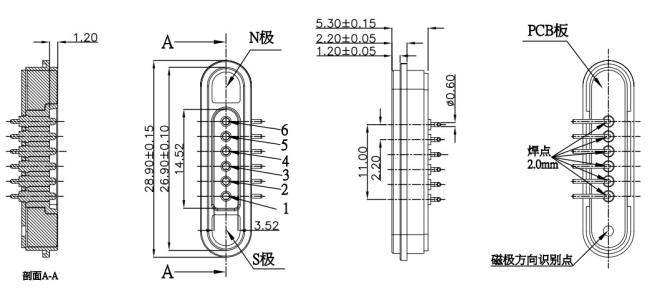

6Pin Male Right Angle Magnetic Connector Technical Drawing:

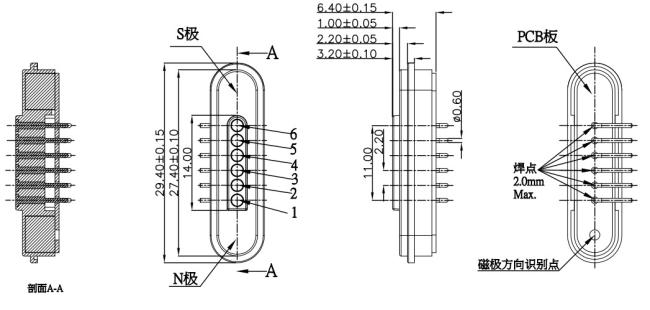

6Pin Female Right Angle Magnetic Connector Technical Drawing:

Why Choose UPE:

. Fast prototyping: 3-5 days for samples

. Cost-effective: Competitive MOQ pricing

. Quality assurance: 100% automated testing

. High-tech production with precision engineering

. Systematic quality control for consistent performance

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Magnetic connectors application:

How to place the order
* You send us drawing or sample

* Our professional engineering team conducts the assessment

* You confrim the drawing and we make the sample to send you

* You test the sample and approved,then place an order and pay 50% deposit

* We start to make the product

* When the goods is done, we take photoes for your check and you then pay the balance

* We deliver the products to you with DHL, TNT,UPS,Fedex

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Any question, please send to union@upetech.net
