5A Magnetic Connectors 7 Pin Magnetic Male Female Connector Right Angle

5A 2.2mm pitch 7pin male female right angle pogo pin magnetic connector.

The 7pin magnetic connector is a compact, medium-current interconnect solution designed for secure and detachable connections in electronics.

Key Specifications:

Continuous Working Current: 5A

Voltage Rating: 12V

Pitch: 2.2mm (compact spacing for dense PCB layouts).

Pin Number: 7-pin (male + female pair).

Right-Angle Design: Saves space in tight enclosures.

Pogo Pin Contacts: Spring-loaded for reliable, low-resistance connections.

Gender: Male and female versions available (mating pair).

Magnetic attraction force between the male and female docking interfaces of 7pin right angle magneti connector is >450 grams (g),, which is critical for stable connections in high-vibration or portable applications. The male female magnetic connector is use N52-grade neodymium magnets, N52 is the highest grade of commercially available neodymium magnets,it is high-performance permanent.

Applications:

Modular Electronics: Quick-release PCBs, test fixtures.

Consumer Devices: Magnetic charging/data ports (e.g., wearables, IoT).

Medical/Industrial Equipment: Reusable connectors for diagnostics.

Drones & Robotics: Detachable power/signal connections,ect.

Advantages:

✅ Space-Saving: Right-angle + 2.2mm pitch suits small devices.

✅ Durability: Pogo pins withstand repeated mating cycles,test life more than 5000 times minium

✅ User-Friendly: Magnetic self-alignment simplifies connections.

✅ Modularity: Easy replacement/upgrades.

7pin magnetic connectors parameter:

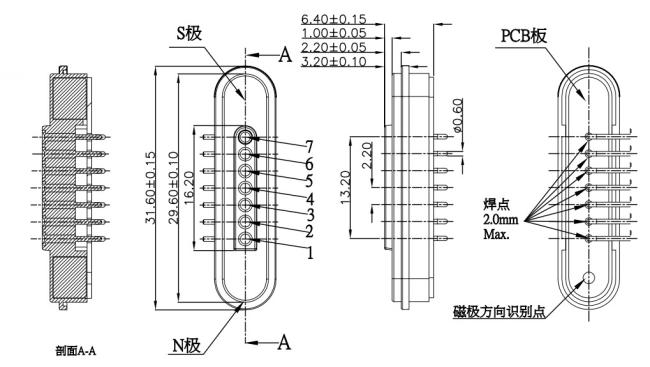

7pin male right angle magnetic connectors:

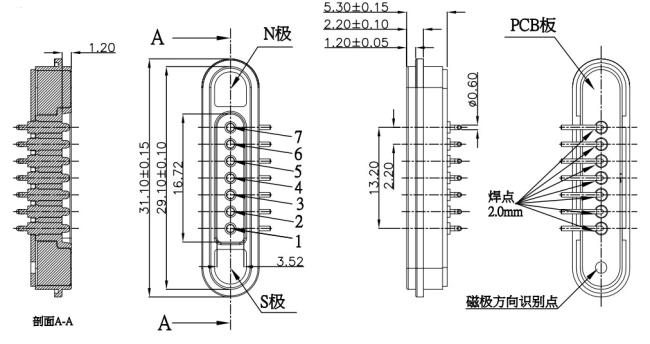

7pin female right angle magnetic connectors:

Recommended pcb layout:

Layout tolerance:±0.05mm

Why do customers choose US?

1.Customization & Flexibility

2.Fast Samples = Faster Time-to-Market

3.Every connector undergoes rigorous quality checks

 Incoming Material Inspection

 In-Process Quality Checks

100% Final Testing

Traceability & Compliance

4.Customer-Focused QC Flexibility

5.Real-Time QC Collaboration

Magnetic connectors application:

We can provide design service

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
