8 Pin Magnetic Connectors 2.2mm Pitch Magnetic Cable Connector Right Angle Use In Electronic Candle Light

2.2mm pitch right angle  8pin magnetic connector use in electronic candle light,the female pin is plane.

1.Materials & Construction:

Pogo pin/Female pin: Brass (Plunger&Barrel plating Au over Ni);

Plastic: HTN+30%UL94 V-0 black, which can withstand high temperatures

Magnet: NdFeB N52 Plating Ni

2.Mechanical:

Spring force: 80g±20g,at 1.0mm working storke.

Mechanical life: 50000 cycle Min..

3.Electrical:

Voltage: 12 V.

Current: 5.0 A.

Contact resistance: 50mΩ Max (PIN) .

High voltage test: AC1000v 0.5mA 3SEC/DC1000v 0.5mA 3SEC

4.Product Description:

ROHS or REACH compliant product.

Magnetic force: more than 450g

Sale spray test: 48H

Product anti-short circuit protection design

Product application explaination(not limited to the following):

1. The PCB board can be soldered with a plug-in;

2. Mold molding and injection molding;

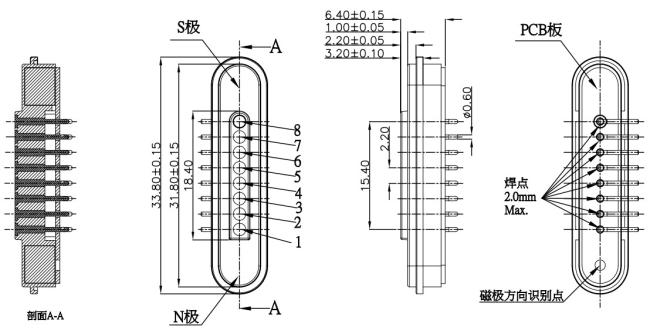

8pin magnetic connectors parameter:

8pin male magnetic connectors:

8pin female magnetic connectors:

Recommended pcb layout:

Layout tolerance:±0.05mm
