3A Magnetic Connectors Male And Female Pogo Magnetic Connector Right Angle

3A Right angle 9 pin pogo magnetic connector male and female for Tablet

The 9pin magnetic connectors using 9 pogo pins with a high-temperature nylon housing and NdFeB magnets for secure attachment.

1. Materials & Plating

Pogo Pins

Material: Brass (plunger & barrel)

Plating: Gold (Au) over Nickel (Ni) → Ensures low contact resistance, corrosion resistance, and durability.

Housing

Material: HTN (High-Temperature Nylon) + 30% Glass Fiber (GF) → High mechanical strength, heat resistance.

Color: Black

Flammability Rating: UL94 V-0 → Self-extinguishing, suitable for high-safety applications.

Magnet

Type: NdFeB (Neodymium Iron Boron), Grade N52 → Strong magnetic force (highest grade for commercial use).

Plating: Nickel (Ni) → Prevents corrosion of the magnet.

2. Electrical Specifications

Operating Voltage: 12V DC

Operating Current: 5.0A → Suitable for moderate-power applications (e.g., laptops, medical devices).

Contact Resistance (PIN): ≤50mΩ (Max) → Ensures efficient power transfer with minimal loss.

High Voltage Test:

AC/DC 1000V, 0.5mA, 3 seconds → Validates insulation and dielectric strength.

3. Key Features

Compliance: ROHS & REACH → Free of hazardous substances (lead, mercury, etc.).

Magnetic Force: ≥450g → Strong hold for secure connections.

Safety Design: Anti-short circuit protection → Prevents damage from accidental contact.

4. Potential Applications

Consumer Electronics: Magnetic chargers for laptops, tablets, or wearables.

Medical/Industrial Devices: Secure, detachable power connections.

Automotive/Aerospace: High-reliability connectors in harsh environments.

5. Advantages

✔ Durability: Gold-plated brass + HTN housing resists wear and heat.

✔ High Current Capacity: 5A handling suits power-hungry devices.

✔ Safety-Certified: UL94 V-0 flammability rating and high-voltage tested.

✔ Strong Magnetism: N52-grade magnets ensure stable attachment.

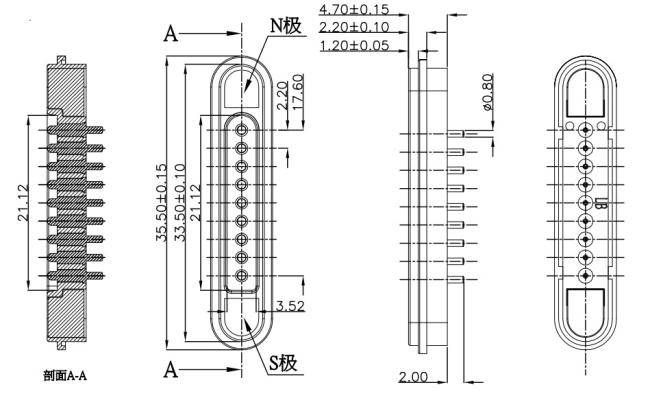

9pin magnetic connectors parameter:

9pin male magnetic connectors:

9pin female magnetic connectors:

Recommended pcb layout:

Layout tolerance:±0.05mm
