OD5.0mm Round Magnetic Connector DC 12V 1A Female Male Connector

OD5.0mm DC12V 1A  circular male female magnetic connector with gold plating

Materials:

Plunger:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni;

Barrel:Lead-free C6801 ,plating 5U" Min Au over 60~100U" Ni ;

Spring:SUS 304 plating 1U" Au;

Housing: Black HTN+30%GFUL94 V-0 ;

Shell: Brass C3602 Plating Ni;

Magnet: NdFeB N52 Plating Ni

Mechanical:

Spring force:50g±10g,at 0.7mm working stroke.

Full storke:0.9mm.

Mechanical life:50000 cycle Min.

Electrical:

Voltage:12 V.

Current:1.0A.

Contact resistance:50mΩMax (PIN).

100% open and short test.

...ROHS or REACHcompliant product.

...Salt spray test:48 H.

...& Key inspection dimension .

…Product application description(not limited to the following):

1.Plug-in welding PCB board;

2.Forming and encapsulating after welding wires;

3.A transfer terminal of thatPCBboard can be adde;

4.Mlding injection molding of embeddable mould;

5. Wires can be bonded directly.

Round Magnetic Connectors Parameter:

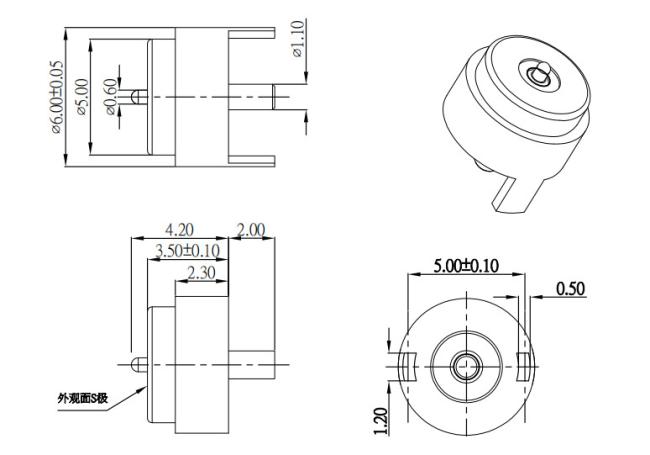

Round Male Magnetic  Connector Technical Drawing

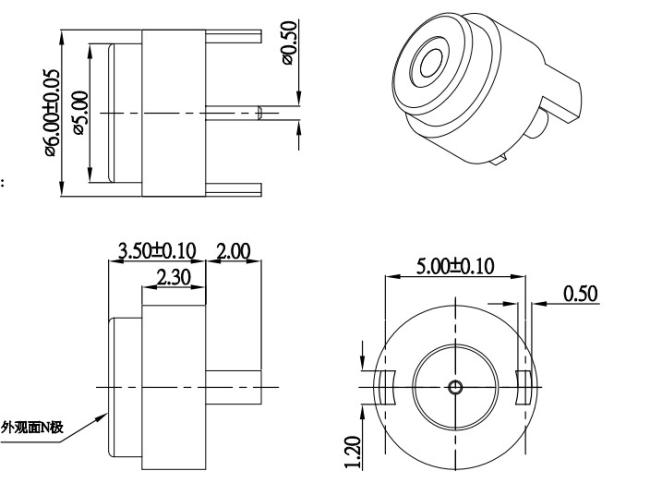

Round Female Magnetic  Connector Technical Drawing

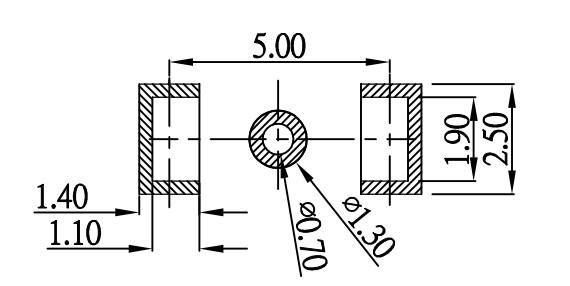

Recommended pcb layout:

Layout tolerance:±0.05mm

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Magnetic connector products application:

1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection

2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment

3.Aviation ,aerospace electronic,military communication

4.Automotive,car navigation,test and measurement equipment

5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)
