OEM Steel Tabletop Conveyor Chain Plate Modular Belt Heavy Duty 3.1mm Thick
Modular belt Steel TableTop Chains
Straight Run Single Hinge MB812
Pin Material - stainless steel.
Standard length - 3.048 m or 10 feet, 80 links.
Maximum conveyor length - 12 meters.

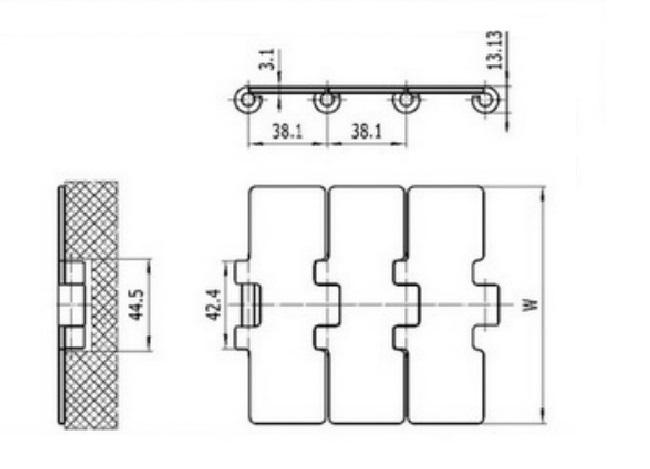

Drawing
Data Sheet
| Chain type | Plate width(W) | Weight |
Working load (max) |
Backflex radius (min) |
Plate thickness |
| mm | kg/m | N(21℃) | mm | mm | |
| MB812-K300 | 72.6 | 2.14 | 3200 | 150 | 3.1 |
| MB812-K325 | 82.6 | 2.61 | |||
| MB812-K350 | 88.9 | 2.71 | |||
| MB812-K400 | 101.6 | 3.28 | |||
| MB812-K450 | 114.3 | 3.50 | |||
| MB812-K500 | 127.0 | 3.59 | |||
| MB812-K600 | 152.4 | 4.40 | |||
| MB812-K750 | 190.5 | 5.30 |
Description and Applications
Steel tabletop chain offers a higher maximum allowable load than standard plastic top chain and is especially suitable for transporting steel components and glass containers via direct mounting.
Steel Tabletop chain can be obtained in various materials and qualities , depending on yourrequirements. This makes steel tabletop chains ideal for all kinds of bottles , 3-piece cans , containers , keg and crate handling conveyors. Applications can be found in breweries , other beverage industries , glass factories and many others.
Characteristics
- The special production method ensures a higher working load.
- The cold-rolling process and the special alloys give the chain a very hard surface , providing a long wearlife, even under abrasive, high-speed circumstances.
