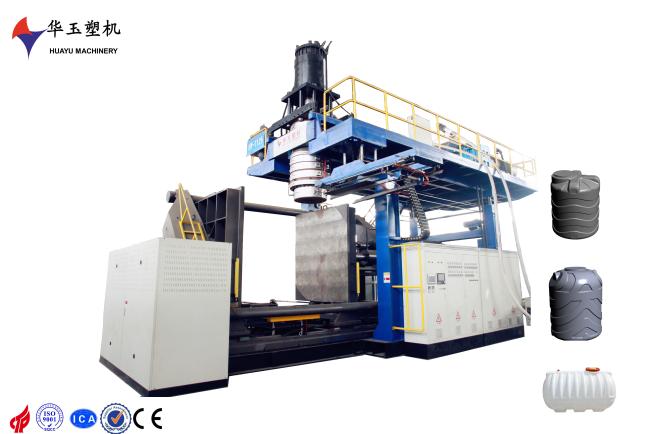

5000L 1-Layer Large Customized Water Tank Blow Molding Machine with Customized

Price Negotiable
Price: 340000 USD
MOQ: 1 SET
Delivery Time: 4 MONTHS
Brand: HUAYU
Product Description

This customized blow molding machine with a 5000L capacity and 1-layer co-extrusion is designed to meet specific production requirements. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's customizable design allows for various product shapes and sizes, making it suitable for multiple industries. Its advanced control system offers precise control over the molding process, ensuring consistent product quality. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

Clamping  System

platen size

2100*2200*60mm(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

160*2  320*1

clamping cylinder stroke

2100mm



clamping force

2200KN



distance between platens

1100-3200mm



max. mould size

1800*2200mm(W*H)



 blowing and cooling system

stretching stroke

according to products



blow pin up/down stroke

600mm



air seat stroke

400mm



maximum air pressure

0.8Mpa



air consumption

3m3/min



Cooling method

Circulating water



ater pressure

0.3MPa



ooling water consumption

75m3/h
