HUAYU 3000L Seven-Layer Large Capacity Water Tank Blow Molding Machine with Superior Thermal

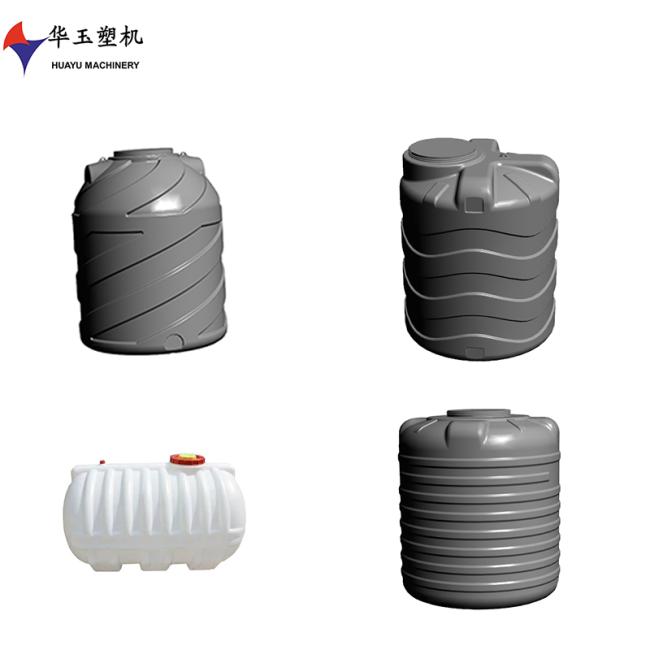

This 3000L seven-layer blow molding machine is designed for producing ultra-high-performance multi-layer water tanks. The seven-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, excellent thermal stability, superior chemical resistance, and advanced UV protection. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
75m3/h |
|
|
Hydraulic system |
||
|
量main oil tank capacity |
1500L |
Servo motor, less energy consumption, high efficiency, low noise |
|
ain oil pump |
gear pump185CC |
|
|
main oil pump motor |
70kw |
|
|
Servo oil tank capacity |
200L |
|
|
oil pump model |
Plunger pump22 |
|
|
oil pump motor |
7.5kw |
|
