21.5 Inch 1920x1080 IPS TFT LCD Panel Full HD Wide Temperature 1000 Nits High Brightness HDMI LCD Display
21.5 Inch 1920x1080 IPS TFT LCD Panel Full HD Wide Temperature 1000 Nits High Brightness HDMI LCD Display
- 1920x1080 IPS Full HD TFT LCD Panel
Boasts 1920x1080 Full HD resolution with IPS TFT technology, offering 178° wide viewing angles without color distortion. High pixel density ensures delicate detail rendering and accurate color reproduction, meeting high-definition display needs across diverse scenarios.
- -20℃ to 60℃ Wide Temperature Range
Operates stably in extreme temperatures from -20℃ to 60℃, seamlessly adapting to harsh working conditions such as high-temperature workshops, cold outdoor environments, and high altitude areas. Eliminates the need for additional temperature control equipment, reducing operational costs.
- 1000 Nits High Brightness HDMI LCD Display
Features 1000 nits ultra-high brightness for clear visibility even under direct sunlight. Equipped with a standard HDMI high-definition interface, enabling fast, stable signal transmission and plug-and-play connectivity with industrial computers, set-top boxes, cameras, and other devices.
Applications
Product Specification
| item | ZH215PIFHD001-01A |
| Screen Size | 21.5 Inch |
| Resolution | 1920x1080 |
| Brightness | 1000 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | LVDS, 30pins Connector |
| Active Aera | 476.64 (W) x 268.11 (H) mm |
| Outline Dimension | 495.6(W)x292.2(H)x10.62(T) mm |
| Operating Temperature | 0℃~+50℃ |
| Storage Temperature | -20℃~+60℃ |
| Touch Panel | Optional Touch Panel |
| HDMI Board | Optional HDMI Board |

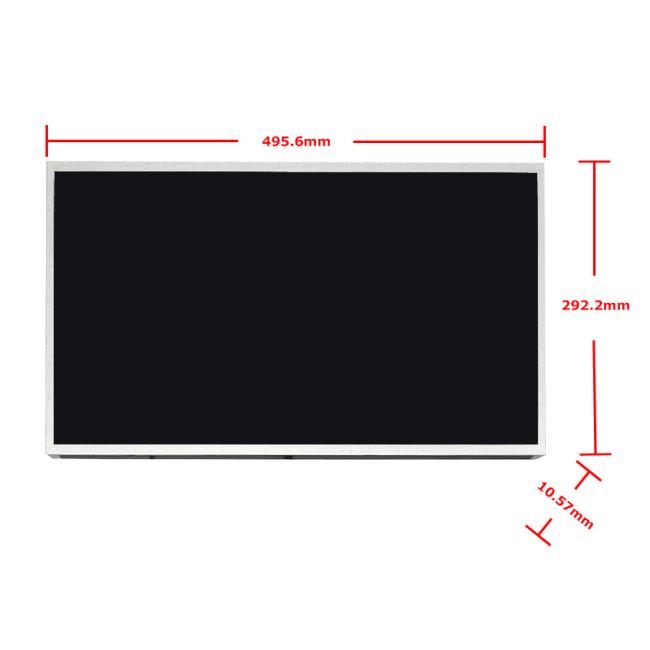

Product Drawing
FAQ
Q1: Does this HDMI LCD Display support plug-and-play HDMI input?
A: Yes, when equipped with the optional HDMI board, it supports plug-and-play HDMI connectivity with computers, media players, and other devices.
Q2: Can I add a touch function to this screen?
A: Yes, the ZH215PIFHD001-01A supports an optional capacitive touch panel for interactive applications.
Q3: Is this display suitable for outdoor use?
A: With 1000 cd/m² brightness and a wide operating temperature range, it’s suitable for semi-outdoor environments such as kiosks, shop windows, and transport terminals.
Q4: Do you support bulk orders or OEM customization?
A: Absolutely. We provide volume pricing, custom branding, and hardware customization services for long-term B2B partnerships.
