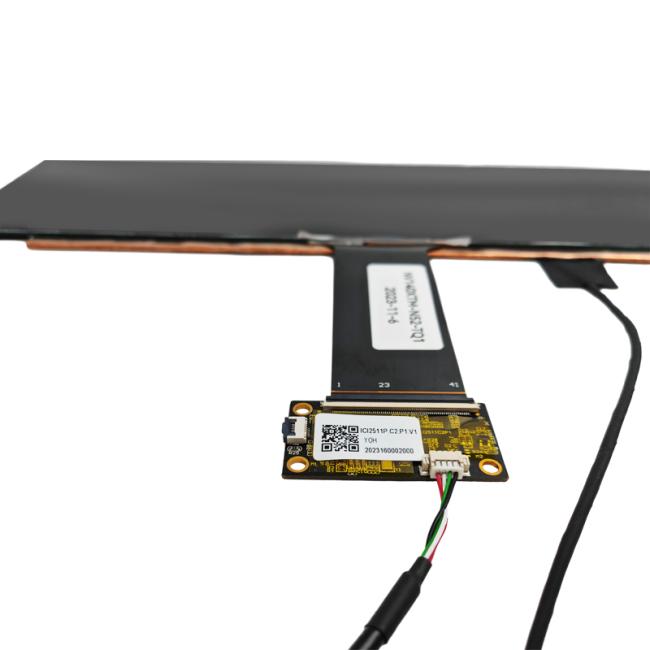

14 Inch Bar Type LCD Display 3840x1100 IPS Industrial Panel with 30 Pins eDP Interface 300nits High Contrast
14 Inch Bar Type LCD Display 3840x1100 IPS Industrial Panel with 30 Pins eDP Interface 300nits High Contrast
This 14 Inch Bar Type LCD Display is engineered for professional B2B integration. It features a genuine BOE IPS panel (NV140XTM-N52) delivering a crisp 3840x1100 IPS Panel resolution, perfect for data-intensive applications like control dashboards and cutting displays. The standard 30 Pins eDP Interface ensures reliable, high-speed connectivity for seamless system integration.
Key Technical Advantages
-
Ultra-High Resolution for Professional Visuals
This display integrates a unique 3840x1100 IPS Panel, delivering a 4K-width ultra-clear image with a high 1200:1 contrast ratio. Every detail remains sharp and readable, making this 14 Inch Bar Type LCD Display ideal for data dashboards, monitoring interfaces, and wide-format information panels.
-
Industry-Standard Connectivity for Easy Integration
Featuring a robust 30 Pins eDP Interface (2-lane), it supports high-speed, low-power signal transmission—the preferred standard in modern embedded systems. This design significantly shortens hardware integration time and reduces development risk for industrial and commercial projects.
-
Commercial-Grade Reliability for Continuous Operation
Rated for stable performance from 0°C to +60°C with a minimum 15,000-hour backlight lifespan, this panel is built to withstand demanding environments. It ensures long-term durability in applications such as industrial HMIs, self-service kiosks, and control panels.
Customization & OEM/ODM Services
-
Touch & Cover Glass Customization:
Optional CTP (Capacitive) or RTP (Resistive) touch screen integration.
Support for customized cover glass and specific outline dimensions.
-
Circuitry & Interface Customization:
Custom FPC cables, connection wires, and LVDS/RGB pin definition adjustments.
Support for the integration of HDMI and other specific driver boards.
-
Structural & Brand Integration:
Support for customized Logo printing and integrated camera modules.
We offer tailored housing solutions for specific structural requirements.
Application Scenarios
- Industrial HMI and Machine Control Panels
- Commercial Self-Service Kiosks & POS Systems
- Shelf Edge Signage & Information Bars
Product Specification
| Part Number | NV140XTM-N52(BOE Original Panel) |
| Size | 14.0 inch |
| Resolution | 3840 x 1100 |
| LCM Luminance | 300cd/m² (Typ.) |
| Display Mode | IPS(Normally Black) |
| Viewing Angle | 85/85/85/85 (Typ.) |
| Interface | 30 pins 2 lane eDP interface, connector |
| Active Area | 344.2176(H)×98.604(V) |
| Outline Dimension | 350.52(H)×108.75(V)×2.5(D) mm |
| Contrast Ratio | 1200:1 (Typ.) |
| Backlight Type | 9.5V/12mA, 60 White LEDs(6S10P) |
| Response Time | 30(Typ.)(Tr+Tf) ms |
| Lifetime | 15000Hours (Min.) |
| Operating Temperature | 0℃~+60 ℃ |
| Storage Temperature | -20℃~+65℃ |
| Touch Panel | Optional CTP or RTP Touch Screen |
| Industry Application | Notebook, Cutting bar screen |
Product Drawing
Why Choose ZhanHui TFT LCD Screen?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
FAQ
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
