14 Inch Bar Type LCD Display 3840x1100 IPS LCD Screen BOE NV140XTM-N52 EDP Optional Touch Screen
14 Inch Bar Type LCD Display 3840x1100 IPS LCD Screen BOE NV140XTM-N52 EDP Optional Touch Screen
- 14 Inch Bar Type LCD Display
- 3840x1100 IPS LCD Screen
- Optional Touch Screen
- Retail advertising and self-service terminals
- Industrial control and monitoring panels
- Vehicle-mounted information displays
- Smart transportation and public information screens
- Hotel and catering service control terminals
Product Specification
| Item Number | NV140XTM-N52 |
| Screen Size | 14 Inch |
| Resolution | 3840x1100 |
| Brightness | 300 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | 2 Lane EDP, 30pins Connector |
| Active Aera | 344.2176(W)x98.604(H) mm |
| Outline Dimension | 350.52(W)x108.75(H)x2.5 (T) mm |
| Lifetime | 15,000 Hrs(Min.) |
| Surface treatment | HC+APF |
| Surface hardness | 3H |
| Operating Temperature | 0℃~+50℃ |
| Storage Temperature | -20℃~+60℃ |
| Touch Panel | Optional Touch Panel |

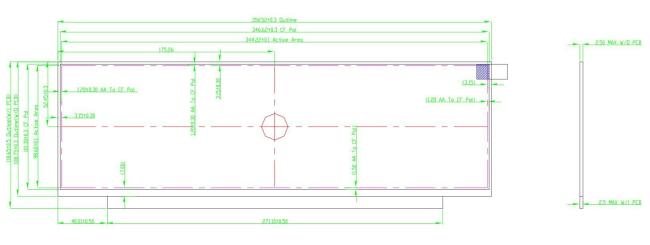

Product Drawing
Why Choose ZhanHui Bar Type TFT LCD Screen?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
FAQ
1. Is the NV140XTM-N52 suitable for industrial applications?
Yes. It supports long-term operation, IPS stability, 3H surface hardness, and 0°C ~ +50°C operating temperature.
2. Can you provide a touch screen version?
Yes. A PCAP touch panel is available upon request.
3. What interface does the display use?
The module uses 2-Lane eDP 30-pin interface.
4. Do you support OEM/ODM customization?
Yes. We offer custom brightness, touch integration, cables, driver board solutions.
5. What is the typical lifetime of this module?
The backlight lifetime is 15,000 hours minimum.
6. Can you supply controller boards (HDMI/AD Board)?
Yes, HDMI/AD driver board kits can be provided according to customer needs.
