15.6 Inch LCD Module 1000nits 1920x1080 IPS Industrial Motherboard LCD Display EDP Touch Screen Display
15.6 Inch LCD Module 1000nits 1920x1080 IPS Industrial Motherboard LCD Display EDP Touch Screen Display
Key Features
- 1920x1080 IPS Industrial Motherboard LCD Display
- EDP Touch Screen Display
Applications
-
Industrial control terminals
-
Medical monitoring equipment
-
Portable industrial detection devices
-
Industrial motherboard-related displays
-
Outdoor commercial control panels
Product Specification
| Item Number | ZH156QH001-01C1-TK1 |
| Screen Size | 15.6 Inch |
| Resolution | 1920x1080 |
| Brightness | 860 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | EDP, 30pins Connector |
| Active Aera | 334.16(W) x 193.56(H) mm |

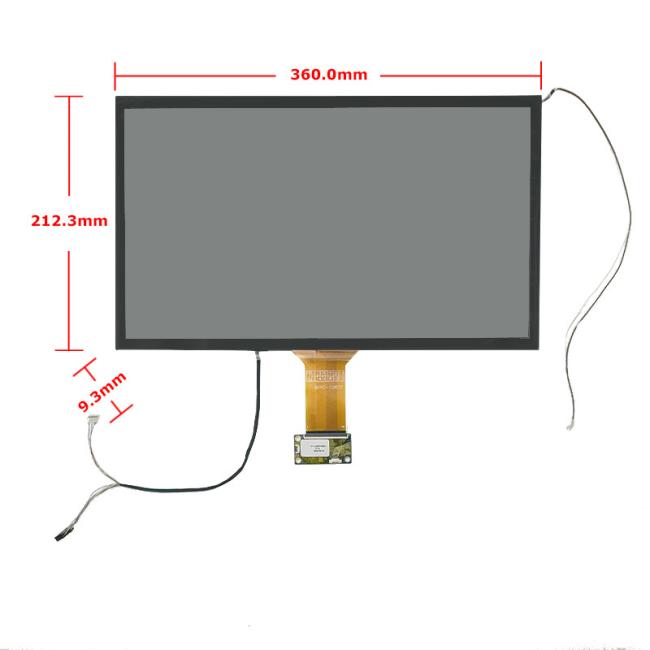

| Outline Dimension | 360.0(W) x212.3(H) x6.4(T) mm |
| Backlight | 60-Chip White LED, 260mA 33V |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | with Touch Panel |
| Touch Interface | I2C / USB |
| Touch Driver IC | ILI2511 |
| Cover lens thickness | 1.1mm |
| Motherboard | Optional Motherboard Kits |
Product Drawing
Why Choose This 15.6 Inch FHD LCD Display?
One-stop display + motherboard solution
No need for separate drivers or interface debugging — our motherboard kit ensures fast integration.
Industrial-grade reliability
Wide temperature support, stable signal performance, and long operating life.
Flexible customization
Touch options, brightness levels, interface configurations, cover glass, and housing customization available.
Long-term production guarantee
Suitable for industrial and medical OEM projects requiring a stable supply chain.
FAQ
Q1: Does the 15.6 inch LCD display support industrial temperature range?
Yes. Wide-temperature versions are available for industrial and outdoor environments.
Q2: Is the touch panel optional?
Yes. We offer PCAP capacitive touch, customized cover glass, and non-touch versions.
Q3: What is included in the motherboard kit?
The kit includes a compatible controller board, cables, and interface configuration for quick integration.
Q4: Can the brightness be customized?
Yes. High-brightness options are available for outdoor or semi-outdoor applications.
Q5: Do you support OEM/ODM customization?
Absolutely. We offer custom FPC, logo printing, touch and etc.
