High Brightness 1000 Nits 12.1 Inch PCAP Touch Display 1024x768 LVDS TFT LCD Display Panel
High Brightness 1000 Nits 12.1 Inch PCAP Touch Display 1024x768 LVDS TFT LCD Display Panel
Key Features
- 12.1 Inch PCAP Touch Display
- 1000 Nits High Brightness
- 1024x768 LVDS TFT LCD Display Panel
Applications
-
Industrial control and HMI terminals
-
Medical monitoring and auxiliary equipment
-
Outdoor information displays and terminals
-
Vehicle-mounted displays (engineering vehicles, buses)
-
Portable detection and measurement devices
Company's focus on the core
- Industrial-Grade TFT/OLED Displays (0.96" to 32")
- Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
- Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
- Touch Solutions: Resistive/Capacitive/Cover Glass
- TN/IPS Panels | Custom Backlight Systems
Product Specification
| Item | ZH0121PH003-03A-TK2 |
| Screen Size | 12.1 Inch |
| Resolution | 1024x768 |
| Brightness | 850 cd/㎡ (Typ.) |
| Interface | LVDS,20 pins Connector |
| Display Mode |
IPS, Normally Black
|
| Active Aera | 245.76(W) x184.32(H) mm |

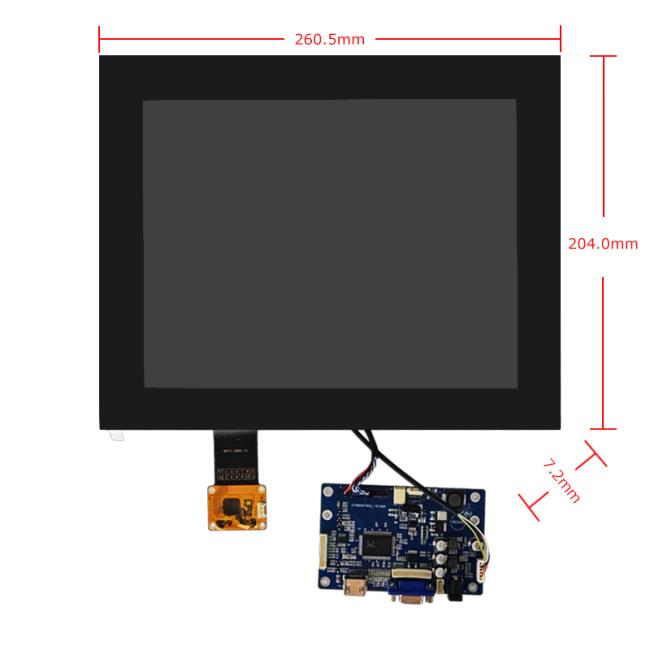

| Outline Dimension | 260.5(W) x204.0(H) x 7.2(T) mm |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | with touch panel |
| CTP Structure |
G+G
|
| TP Driver IC |
ILI2511
|
| Surface Hardness | 6H |
| CTP Interface | USB |
| Driver Board kits | Optional Driver Board kits |

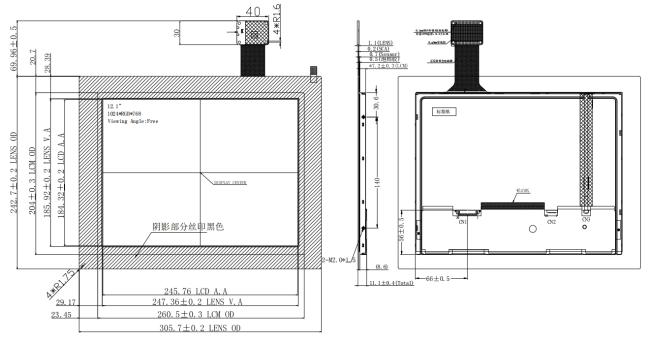

Product Drawing
Why Choose ZhanHui TFT LCD Screen?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
FAQ
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
