12.1 Inch 1000nits High Brightness LCD Display 1024x768 IPS LVDS 20pins LCD Screen Optional Touch Panel
12.1 Inch 1000nits High Brightness LCD Display 1024x768 IPS LVDS 20pins LCD Screen Optional Touch Panel
Key Features
- 12.1 Inch 1000nits High Brightness LCD Display
- 1024x768 IPS
- Optional Touch Panel
Applications of 12.1 Inch LCD Display Panel
-
Industrial control and HMI terminals
-
Outdoor information displays
-
Medical monitoring equipment
-
Vehicle-mounted displays (engineering vehicles, buses)
-
Portable detection devices
Product Specification
| Item Number | ZH0121PH003-03A |
| Screen Size | 12.1 Inch TFT LCD |
| Resolution | 1024x768 |
| Brightness | 1000 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | LVDS, 20pins connector |
| Active Aera | 245.76(W) x184.32(H) mm |

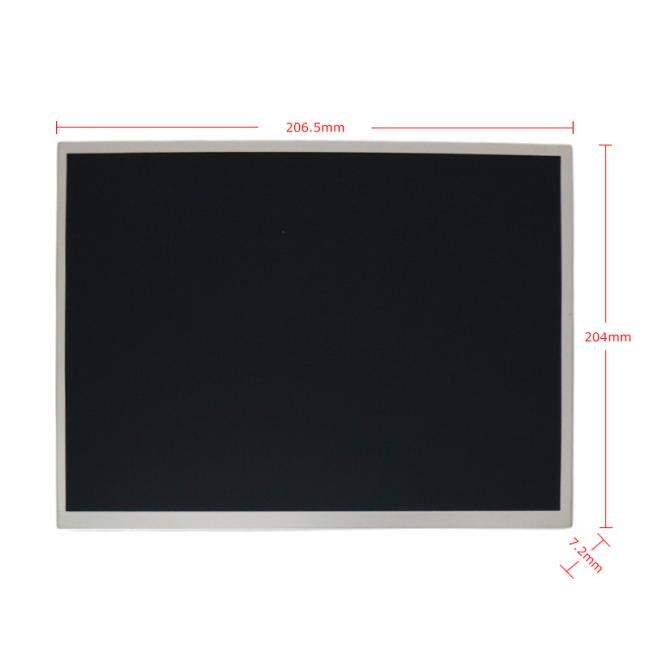

| Outline Dimension | 260.5(W) x204.0(H) x 7.2(T) mm |
| Backlight | 48-Chip White LED, 180mA 36V |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional Touch Panel |

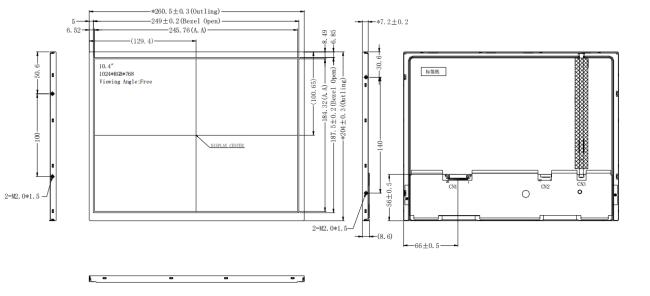

Product Drawing
Why Choose Zhanhui High Brightness LCD Display?
- Over 10 years of industrial LCD manufacturing experience
- OEM and ODM customization available (touch panel, interface, brightness)
- Strict quality control for long-term reliability
- Comprehensive technical support for integration and testing
FAQ
Q1: Is this 12.1 inch LCD readable in direct sunlight?
A: Yes, with 1000 nits high brightness, it is sunlight readable for outdoor and industrial applications.
Q2. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
Q3. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
Q4. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q5.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
Q6. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
Q7: Is OEM customization supported?
A: Yes, we support customization including touch panel, brightness, and interface adjustments.
