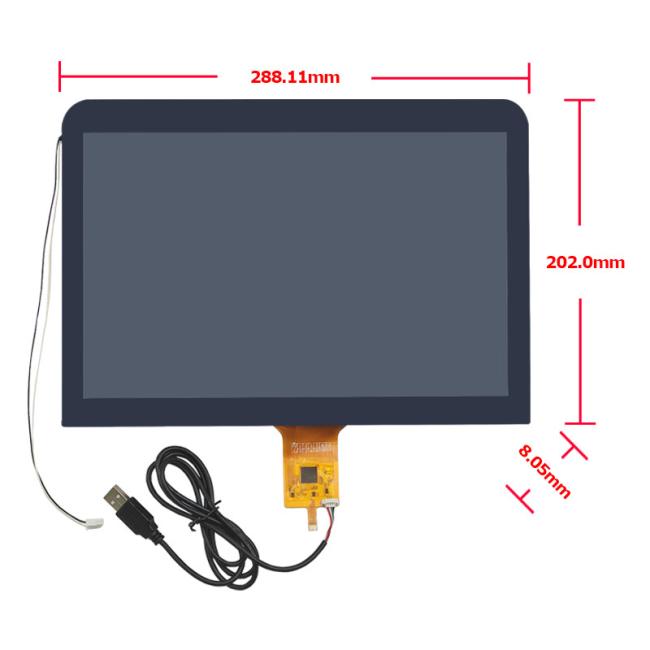

1280x800 TFT LCD Touch Display 12.1 Inch 750nits High Brightness LCD Display Optional HDMI Board Kits
1280x800 TFT LCD Touch Display 12.1 Inch 750nits High Brightness LCD Display Optional HDMI Board Kits
Key Features
- 1280x800 TFT LCD Touch Display
- 12.1 Inch 750nits High Brightness LCD Display
- Optional HDMI Board Kits
Applications
-
Industrial control and HMI terminals
-
Outdoor information displays
-
Medical auxiliary equipment
-
Portable detection tools
-
Smart home and commercial controls
Product Specification
| Item Number |
ZH121BIH D002-05A-TQ1
|
| Screen Size | 12.1 Inch |
| Resolution | 1280x800 |
| Brightness | 750 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | LVDS, 40pins connector |
| Active Aera | 261.12(W) x163.2(H) mm |
| Outline Dimensions | 276.65(W) x179.4(H) x 5.8(T) mm |
| Backlight | 48-CHip White LED, 360mA 24V |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | with Touch Panel |
| Touch IC | ILI2511 |
| Touch Interface | I²C /USB |
| Surface treatment | AR+AF |
| Surface Hardness | 6H |
| HDMI Board | Optional with HDMI Board Kits |

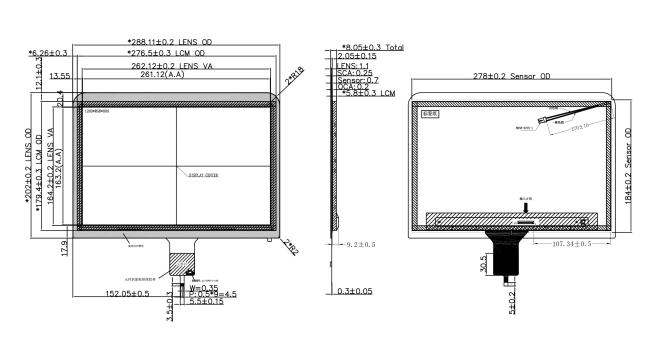

Product Drawing
Why Choose ZhanHui TFT LCD Screen?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
FAQ
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
