Custom 12.1 Inch Wide Temperature LCD 1280x800 IPS 500nits LVDS Industrial Grade LCD Display
Custom 12.1 Inch Wide Temperature LCD 1280x800 IPS 500nits LVDS Industrial Grade LCD Display
Key Features
- 12.1 Inch Wide Temperature LCD
- 1280x800 IPS 500nits LVDS
- Industrial Grade LCD Display
Applications
-
Industrial control and HMI systems
-
Vehicle-mounted display terminals
-
Outdoor environmental monitoring equipment
-
Harsh-environment detection tools
-
Industrial automation control panels
Product Specification
| Item Number |
ZH0121BIHD002-02A
|
| Screen Size | 12.1 Inch |
| Resolution | 1280x800 |
| Brightness | 500 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | LVDS, 40pins connector |
| Active Aera | 261.12(W) x163.2(H) mm |

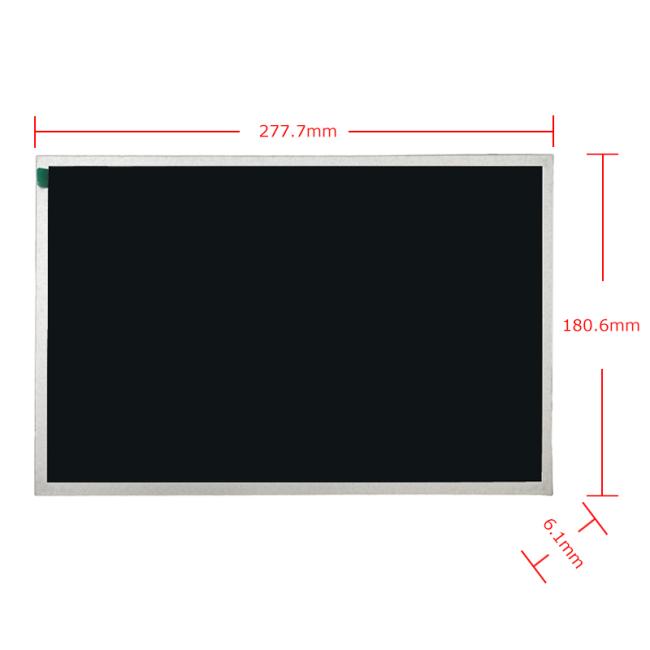

| Outline Dimensions | 277.7(W) x180.6(H) x 6.1(T) mm |
| Backlight | 48-Chip White LED, 160mA 36V |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional Touch Panel |
| HDMI Board kits | Optional HDMI Board kits |

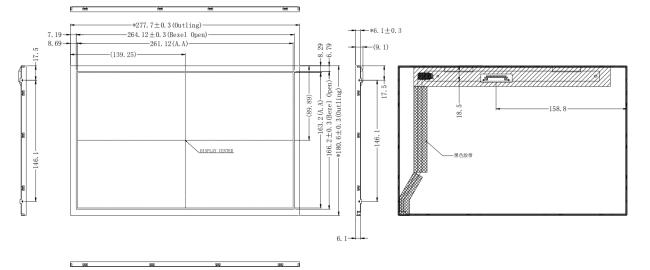

Product Drawing
Why Choose ZhanHui TFT LCD Screen?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
FAQ
Q1: What is the advantage of IPS technology in this display module?
A1: IPS technology offers superior color accuracy and wider viewing angles compared to other display technologies. It ensures vibrant, consistent colors and high image quality, even when viewed from various angles. This makes it ideal for professional-grade applications.
Q2: How does the optional Touch Panel enhance this product?
A2: The optional Touch Panel adds interactivity to the ZH0121BIHD002-02A display, allowing users to interact directly with the screen. This feature is perfect for POS systems, interactive kiosks, medical devices, and other applications where touch input is required.
Q3: Can the ZH0121BIHD002-02A be used outdoors?
A3: While the ZH0121BIHD002-02A has an operating temperature range of -20℃ to +70℃, making it suitable for a variety of industrial and outdoor applications, additional protection may be required for exposure to direct sunlight or extreme outdoor conditions.
Q4: What kind of systems can the ZH0121BIHD002-02A integrate with?
A4: The ZH0121BIHD002-02A features an LVDS interface and a 40-pin connector, which allows easy integration into a wide range of embedded systems, including industrial controllers, automotive displays, and consumer electronics.
Q5: How is the backlight power consumption handled in this module?
A5: The 48-chip white LED backlight in the ZH0121BIHD002-02A provides excellent brightness while ensuring energy efficiency. The module is designed to offer long-term performance without excessive power consumption, making it ideal for continuous operation in industrial settings.
