12.1 Inch Wide Temperature LCD High Brightness 1000nits LCD Screen 1280x800 IPS LVDS TFT LCD Module
12.1 Inch Wide Temperature LCD High Brightness 1000nits LCD Screen 1280x800 IPS LVDS TFT LCD Module
- Wide Temperature
- High Brightness 1000nits
- 1280x800 IPS LVDS
- Outdoor monitoring equipment
- Industrial control and HMI terminals
- Vehicle and marine displays
- Ruggedized laptops and tablets
- Outdoor commercial information kiosks
Product Specification
| Item | ZH121QIHD001-01A |
| Screen Size | 12.1 Inch |
| Resolution | 1280x800 |
| Brightness | 1000 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | LVDS, 30pins Connector |
| Active Aera | 261.12(W) x 163.2(H) mm |
| Outline Dimension | 278(W) x184.1(H) x5.65(T) mm |
| Backlight | 50-Chip white LED, 320mA 30V |
| Operating Temperature | -30℃~+80℃ |
| Storage Temperature | -30℃~+85℃ |
| Surface Treatment | AG type, 3H hard coating |
| Touch Panel | Optional Touch Panel |

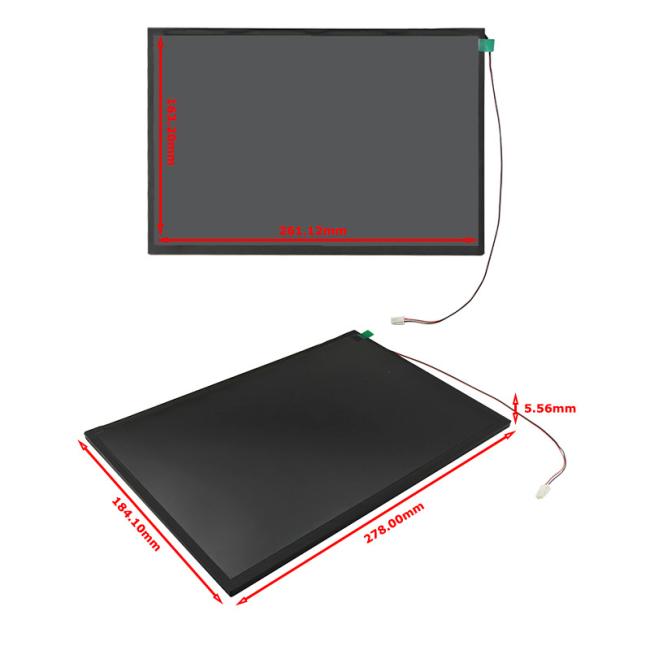

Product Drawing
Why Choose ZhanHui TFT LCD Screen?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
FAQ
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
Call to Action :
-
Upgrade your device visibility with this premium TFT LCD Module!
-
Request a Quote Today!
-
Download Full Datasheet (Link)
-
Contact Sales for Volume Pricing
-
Order Samples Now!
