Industrial Grade 7 Inch 1000 Nits High Brightness LVDS Interface Wide Temperature LCD 1024x600 TN Display
Industrial Grade 7 Inch 1000 Nits High Brightness LVDS Interface Wide Temperature LCD 1024x600 TN Display
The ZH070BH018-08 is a 7.0-inch Industrial Grade TFT display module engineered for reliable operation in demanding environments.This module features a 1000 Nits High Brightness LCD Display (Typ.) with 1024x600 resolution, ensuring excellent visibility even under high ambient light. Designed for seamless integration, it utilizes a standard LVDS interface lcd display (FPC 40-pin) and offers optional touch solutions (CTP or RTP). As a true wide temperature lcd 1024x600, it supports operation from -20°C to +60°C and boasts a minimum lifetime of 20,000 hours, making it an ideal core component for professional HMI and industrial systems.
Technical Advantages
1.High Luminance and Clarity
Features 1000 cd/m² typical brightness, making the display sunlight-readable and highly effective for outdoor or semi-outdoor applications.
2.Industrial Wide-Temperature Operation & Long Lifespan
Designed for reliability, the module supports a broad operating temperature range of -20℃ to +60℃, ensuring stable performance in extreme environments, with a minimum lifetime of 20,000 hours.
3.Flexible Interface and Panel Options
Standard connection via LVDS (FPC 40-pin), with optional RGB or MIPI interfaces available. The default TN panel offers a fast response time (25ms Typ.), with an optional IPS mode for wider viewing angles.
4.Optional Integrated Touch Solution
Supports the integration of either Capacitive (CTP) or Resistive (RTP) touchscreens to meet tailored interactive system requirements.
Application Scenarios
- Industrial Control & HMI Panels
- Specialized Digital Signage
- Transportation & Vehicle Systems
- Self-Service & Kiosk Terminals
- Specialized Instrumentation
Company's focus on the core
- Industrial-Grade TFT/OLED Displays (0.96" to 32")
- Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
- Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
- Touch Solutions: Resistive/Capacitive/Cover Glass
- TN/IPS Panels | Custom Backlight Systems
Product Specification
| Part Number | ZH070BH018-08 |
| Size | 7.0 inch |
| Resolution | 1024 x 600(Or optional 800x480,800x1280,1200x1920 |
| LCM Luminance | 1000cd/m² (Typ.) |
| Display Mode | TN ( Normally White) Or optional IPS mode |
| Viewing Angle | 80/80/60/70 (Typ.) |
| Interface | LVDS, FPC 40pins (Or optional RGB 50pins /MIPI 30pins) |
| Display Colors | 16.7M |
| Dot Pitch | 0.0502(W) x 0.1432(H) mm |
| Active Area | 154.21(W)x85.92(H) mm |

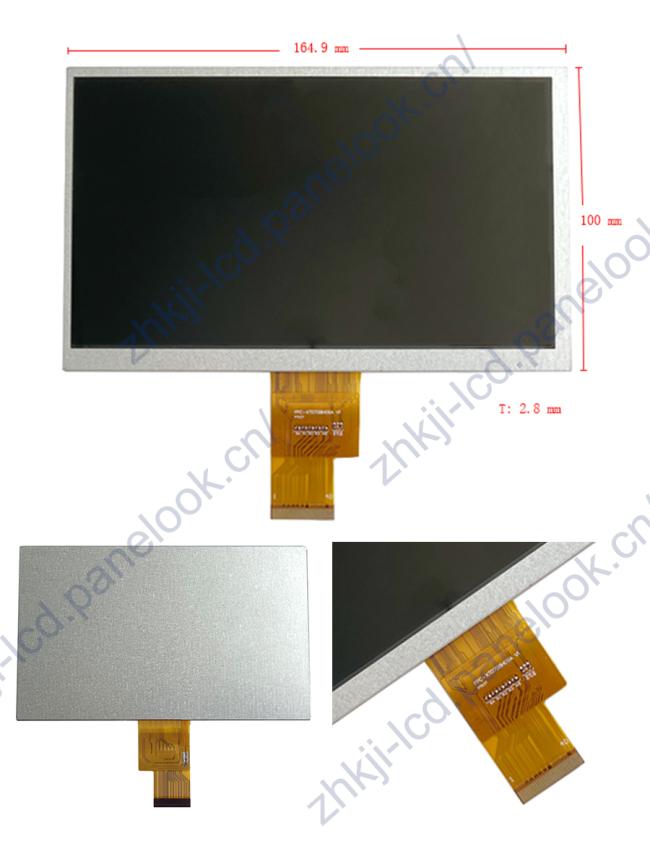

| Outline Dimension | 164.9(W)x100.0(H)x2.8(T) mm |
| Contrast Ratio | 700:1 (Typ.) |
| Backlight Type | 30-chip WLEDs(3S10P), 19.2V/200mA |
| Response Time | 25(Typ.)(Tr+Tf) ms |
| Lifetime | 20000Hours (Min.) |
| Operating Temperature | -20℃~+60 ℃ |
| Storage Temperature | -30℃~+70℃ |
| Touch Panel | Optional CTP or RTP Touch Screen |
| Industry Application | Industrial / Digital signage |

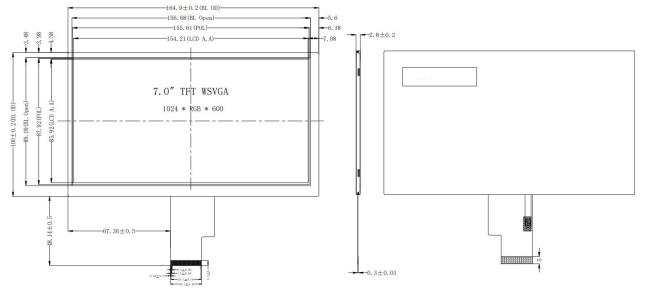

Product Drawing
Why Choose ZhanHui TFT LCD Screen?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
