7 inch HD TFT LCD Display 1200x1920 IPS 2000 Nits High Brightness Wide Temperature MIPI Interface Display
7 inch HD TFT LCD Display 1200x1920 IPS 2000 Nits High Brightness Wide Temperature MIPI Interface Display
The ZH070BH106-07A is a 7-inch HD TFT LCD Display designed for demanding B2B and industrial applications. It features a 1200x1920 high brightness lcd display with an IPS panel, delivering 2000 cd/m² typical luminance for sunlight visibility. Equipped with a stable hd mipi interface display (40-pin MIPI), wide temperature operation (-20℃ to +70℃), and optional touch, it is engineered for reliability in automation, transportation, and outdoor equipment.
Technical Advantages
-
High-Resolution IPS Display with Wide Viewing Angle
The 7-inch screen offers sharp 1200×1920 resolution and uses an IPS (Normally Black) panel, ensuring consistent color and clarity across viewing angles of 80/80/80/80 (Typ.).
-
High-Speed MIPI Interface for Stable Signal
Features a standard 40-pin MIPI interface, providing a stable, high-bandwidth connection for seamless integration with modern processors and SoCs.
-
Exceptional Brightness for Challenging Environments
Delivers a typical luminance of 2000 cd/m², ensuring clear readability even under direct sunlight or high ambient light conditions.
-
Robust Design with Wide Temperature Range
Supports an operating temperature range of -20℃ to +70℃ and storage from -30℃ to +80℃, guaranteeing reliability in harsh industrial and outdoor settings.
-
Flexible Touch and Integration Options
Offers optional Capacitive (CTP) or Resistive (RTP) touch panels. The compact design (111.0×166.0×3.29 mm) and efficient 56-chip WLED backlight (21V/400mA) enable easy integration into space-constrained devices.
Application Scenarios
- Outdoor High-Brightness HMIs and Industrial Control Panels
-
Marine, Aviation, and Special Vehicle Display Terminals
-
Portable Field Testing, Measurement, and Monitoring Equipment
-
Self-Service Kiosks and Digital Signage in High Ambient Light
-
Professional Broadcast and Video Production Monitoring Systems
Company's focus on the core
- Industrial-Grade TFT/OLED Displays (0.96" to 32")
- Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
- Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
- Touch Solutions: Resistive/Capacitive/Cover Glass
- TN/IPS Panels | Custom Backlight Systems
Product Specification
| Part Number | ZH070BH106-07A |
| Size | 7.0 inch |
| Resolution | 1200×1920 |
| LCM Luminance | 2000cd/m² (Typ.) |
| Display Mode | IPS(Normally Black) |
| Viewing Angle | 80/80/80/80 (Typ.) |
| Interface | MIPI, 40pins Connector (F62240-H1210B) |
| Active Area | 94.5(W)x151.2(H) mm |

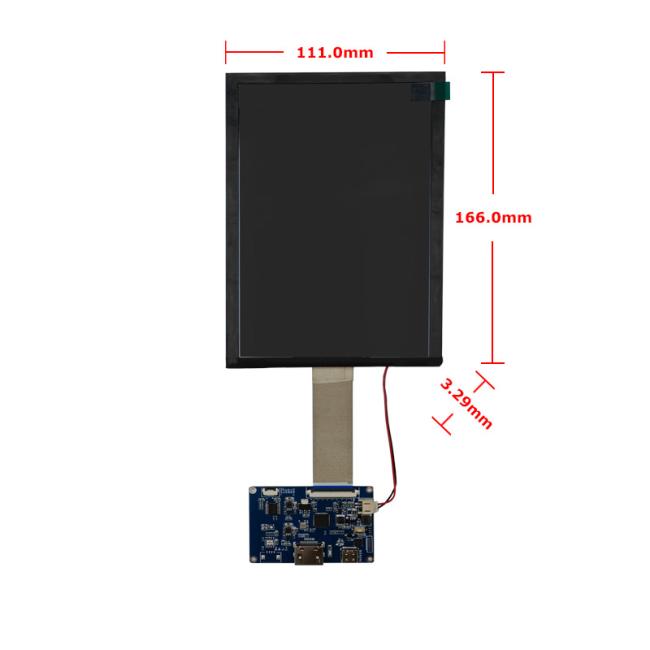

| Outline Dimension | 111.0(W)x166.0(H)x3.29(T) mm |
| Backlight Type | 56-chip WLEDs(7S8P), 21V/400mA |
| Operating Temperature | -20℃~+70 ℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional CTP or RTP Touch Screen |
| Accessories/Kits | HD-MI board Kits +HD-MI board Kits + connection cables |

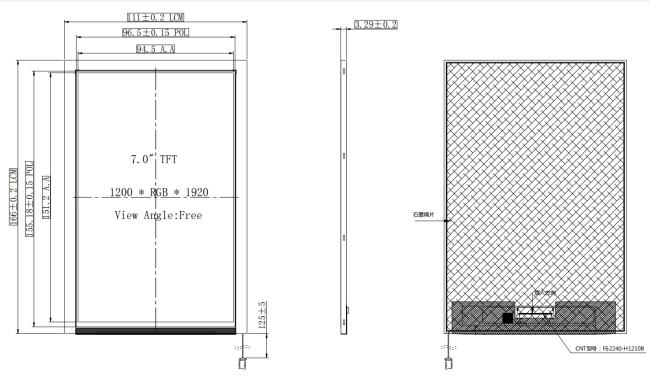

Product Drawing
Why Choose ZhanHui TFT LCD Screen?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
