Custom 10.1 Inch HDMI LCD Display 500nits 1024x600 IPS RGB TFT Touch Display Wide Temperature
Custom 10.1 Inch HDMI LCD Display 500nits 1024x600 IPS RGB TFT Touch Display Wide Temperature
Key Features
- 10.1 Inch Custom LCD Display
- 1024x600 IPS RGB TFT Screen with 500nits
- Integrated Touch Function & HDMI Interface
- Wide Temperature Adaptability
Applications
-
Industrial control and HMI terminals
-
In-vehicle infotainment and control displays
-
Medical auxiliary monitoring devices
-
Smart home control panels
-
Custom portable detection and measurement equipment
Product Specification
| Part Number | ZH101BH063-01A |
| Size | 10.1 inch |
| Resolution | 1024 x 600 |
| LCM Luminance | 500cd/m² (Typ.) |
| Display Mode | IPS(Normally Black) |
| Viewing Angle | 85/85/85/85 (Typ.) |
| Interface | RGB,FPC 50pins |
| Active Area | 222.72(H) * 125.28(V) |

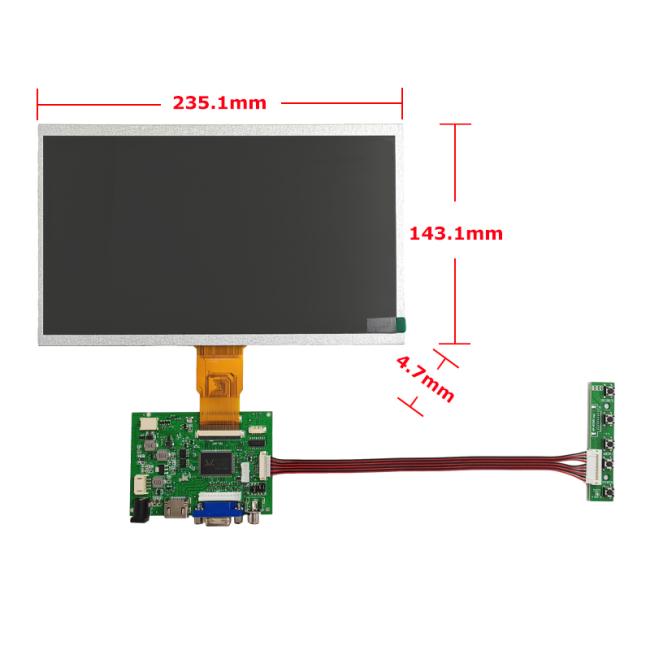

| Outline Dimension | 235.1(H) *143.1(V) *4.7(T) |
| Contrast Ratio | 800:1 (Typ.) |
| Backlight Type | 42-chip WLEDs(6S7P), 18.0V/140mA |
| Response Time | 30(Typ.)(Tr+Tf) ms |
| Lifetime | 20000Hours (Min.) |
| Operating Temperature | -20℃~+70 ℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional CTP or RTP Touch Screen |
| Accessories/Kits | Driver board and connecting cable |

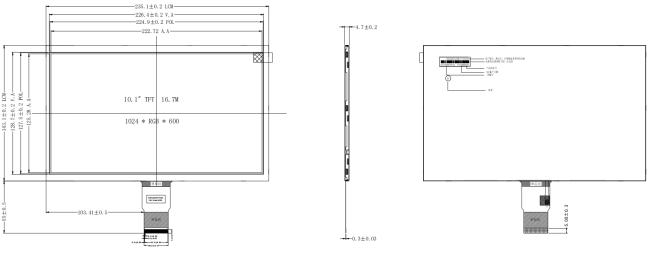

Product Drawing
Why Choose ZhanHui TFT LCD Screen?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
FAQ
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
