10.1 Inch IPS HD MIPI Interface 1920x1200 high brightness lcd display 1000nits Wide Temperature Industrial Grade Panel
10.1 Inch IPS HD MIPI Interface 1920x1200 high brightness lcd display 1000nits Wide Temperature Industrial Grade Panel
This industrial-grade 10.1 inch lcd display 1000nits is engineered for rigorous embedded applications requiring superior visual clarity and durability. It exemplifies a high-performance 1920x1200 high brightness lcd display, utilizing advanced IPS technology for consistent wide-angle viewing. Designed for seamless system integration, this module features a reliable hd mipi interface display for high-speed data transmission and stable performance in OEM/ODM projects.
Technical Advantages
-
10.1-Inch WUXGA IPS Panel with Superior Clarity:
Features a high-definition 1920x1200 high brightness lcd display using IPS (Normally Black) technology. It ensures sharp, high-contrast images and wide viewing angles, ideal for professional applications.
-
1000 cd/m² Sunlight Readable Brightness:
As a robust 10.1 inch lcd display 1000nits solution, it is powered by a 36-chip LED backlight, guaranteeing clear visibility in outdoor or high-ambient light environments.
-
Wide Temperature Industrial Reliability:
Built to withstand harsh conditions, it operates from -20°C to +70°C, ensuring stable performance where standard displays fail.
-
High-Speed MIPI Interface for Seamless Integration:
This hd mipi interface display features a 34-pin connector, supporting high-resolution data transmission with low power consumption for modern embedded systems.
-
Slim Design & Comprehensive Customization:
With a slim 4.5mm profile, it fits compact spaces. We support optional touch panels (Capacitive/Resistive) and full customization including interface adaptation, driver boards, and cover glass.
Application Scenarios
- Industrial Human-Machine Interface (HMI) and Process Control Panels
- Transportation & Vehicle-Mounted Display Systems
- Medical Monitoring and Diagnostic Equipment
- Self-Service Kiosks, POS, and Outdoor Information Displays
- Portable Field Testing and Measurement Devices
Company's focus on the core
- Industrial-Grade TFT/OLED Displays (0.96" to 32")
- Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
- Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
- Touch Solutions: Resistive/Capacitive/Cover Glass
- TN/IPS Panels | Custom Backlight Systems
Product Specification
| Item Number |
ZH101BH056-03A
|
| Screen Size | 10.1 Inch |
| Resolution | 1920x1200 |
| Brightness | 1000 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | MIPI, 34pins Connector |
| Active Aera | 216.81(W)x135.5(H) mm |

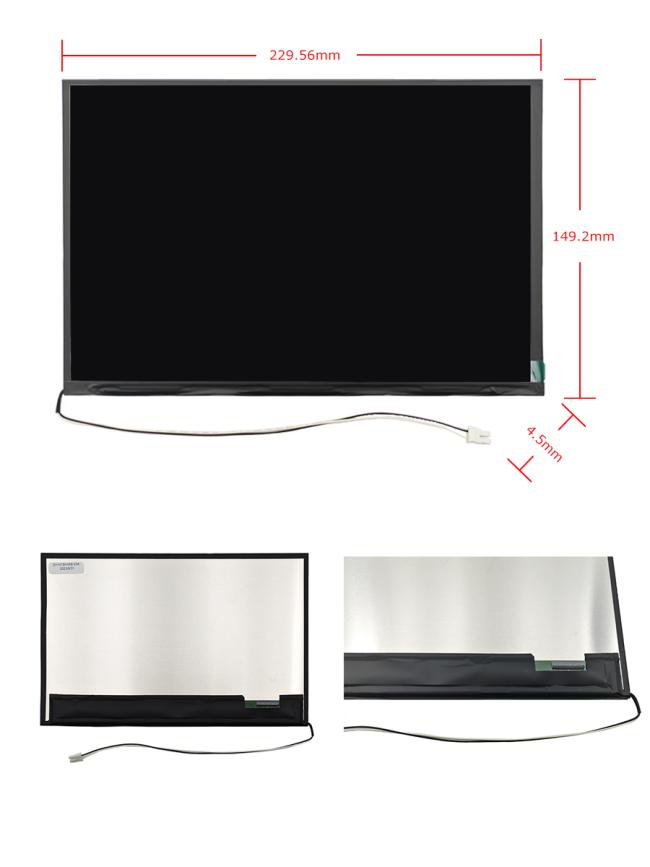

| Outline Dimensions | 229.56(W)x149.2(H)x4.5(T) mm |
| Backlight | 36-Chip White LED, 240mA 27V |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional Touch Panel |

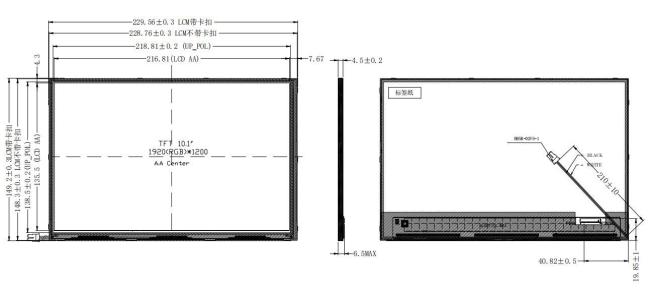

Product Drawing
Why Choose ZhanHui High Brightness LCD Display?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
FAQ
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
Get Your Solution & Support
Integrate this display into your project:
-
Request quote/datasheet (CAD, specs, pricing for ZH101BH056-03A)
-
Discuss customization (size, brightness, interface, touch.
-
Get technical integration guidance.
[Contact Us for Quote & Datasheet] or [Submit Your Project Specs]
