7 Inch PCAP Touch Panel 1024x600 Full HD LCD Display IPS 300 nits   Wide Temperature FPC 50pins Connector

The ZH70324T2 is an industrial-grade 7 inch IPS LCD module featuring a 1024x600 resolution full HD display with integrated PCAP touch panel. With a brightness of 300 nits and a wide operating temperature range of -20°C to +60°C, this display ensures stable and reliable performance in demanding environments. It is equipped with an FPC 50-pin connector interface and features a 6H surface hardness touch panel driven by the GT911 touch IC via I²C interface.

Technical Advantages

• IPS Wide Viewing Angle & Full HD Clarity

7-inch IPS panel with 1024×600 resolution, normally black mode, and consistent viewing angles.

• High Brightness & Wide Temperature Range

300 cd/m² brightness, operating temperature of -20°C to +60°C, storage temperature of -30°C to +80°C, suitable for industrial applications.

• Industrial Touch Solution

Features GT911 touch controller with I²C interface, PCAP touch support, and 6H surface hardness.

• Stable Interface & Compact Design

FPC 50-pin connector, 27-chip LED backlight, compact outline (164.9×100×3.5 mm), easy integration.

• Customizable Options

Supports customization of FPC cables, interfaces, cover glass, HDMI boards, and driver boards to meet specific integration requirements.

Application Scenarios

• Industrial HMI and control panels
• Portable industrial devices and handheld terminals
• Commercial self-service kiosks and interactive equipment
• Embedded display and monitoring systems


Company's focus on the core

• Industrial-Grade TFT/OLED Displays (0.96" to 32")
• Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
• Wide Temperature  -30℃ to +80℃ ,-40℃ to +95℃
• Touch Solutions: Resistive/Capacitive/Cover Glass
• TN/IPS Panels | Custom Backlight Systems

Product Specification

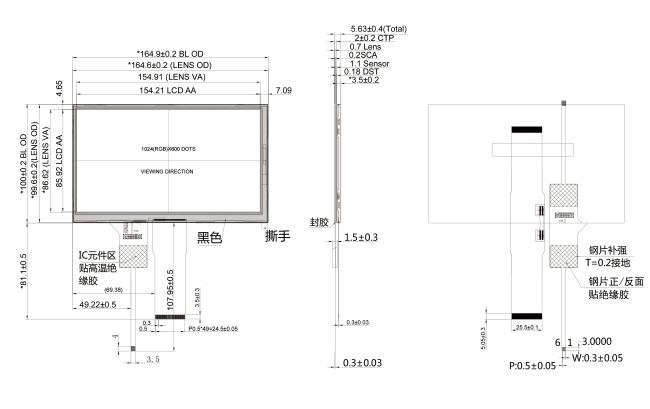

Product Drawing

Why Choose ZhanHui High Brightness LCD Display?

• Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
• A powerful engineering support team offers a one-stop integrated solution
• Flexible and efficient customization capabilities, with rapid response to demands
• Strict quality control system (such as through IATF 16949, ISO 9001)
• Global logistics and localized service support
• Highly competitive cost-effectiveness

FAQ

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Get Your Solution & Support

Integrate this display into your project:

• Request quote/datasheet (CAD, specs, pricing for ZH70324T2 )

• Discuss customization (size, brightness, interface, touch.

• Get technical integration guidance.

[Contact Us for Quote & Datasheet] or [Submit Your Project Specs]

Service & Warranty

We are committed to reliable products and seamless collaboration for every business partner.

• Quality Assurance: Strict industrial-grade testing

• Expert Support: Full guidance (selection → integration → after-sales)

• Flexible Cooperation: Samples, pilot runs, bulk production

• Global Service: Efficient logistics + local support
