Industrial Grade 10.1 inch IPS High Brightness1280x800 LVDS LCD Display 1000nits Wide Temperature Optional Touch Panel
Industrial Grade 10.1 inch IPS High Brightness1280x800 LVDS LCD Display 1000nits Wide Temperature Optional Touch Panel
The ZH101HH058-02 is an industrial-grade 10.1 inch lcd display 1000nits, engineered for reliability in demanding environments. This ips high brightness lcd display delivers 1000 cd/m² typical brightness and features a sharp 1280x800 lvds lcd display resolution via a stable 40-pin LVDS interface. With an IPS (Normally Black) panel and wide-temperature operation (-20℃~+70℃), it ensures consistent performance. An optional RTP touch panel is available for flexible integration.
Technical Advantages
- High Brightness & Sunlight Readability
With a typical brightness of 1000 cd/m², this 10.1 inch lcd display 1000nits guarantees excellent visibility under direct sunlight or in high-ambient light industrial settings.
- Industrial Ruggedness & Wide Temperature Range
Built for harsh conditions, it operates reliably from -20℃ to +70℃ and can be stored from -30℃ to +80℃.
- Superior IPS Viewing Performance
The ips high brightness lcd display offers wide viewing angles, consistent color reproduction, and sharp image quality from its 1280x800 IPS panel.
- Stable Signal Transmission
The 1280x800 lvds lcd display utilizes a robust 40-pin LVDS connector, ensuring reliable data transmission for industrial control systems.
- Touch & Customization
Supports an optional Resistive Touch Panel (RTP). Customization options include cover glass, backlight adjustment, interface modifications, and mechanical design.
Application Scenarios
- Industrial Human-Machine Interfaces (HMI) and Process Control Panels
- Outdoor Instrumentation, Monitoring, and Measurement Equipment
- Transportation, Automotive, and Vehicle-Mounted Display Systems
- Medical Devices and Specialized Industrial Equipment
- Any application requiring high-brightness readability and wide-temperature reliability
Company's focus on the core
- Industrial-Grade TFT/OLED Displays (0.96" to 32")
- Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
- Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
- Touch Solutions: Resistive/Capacitive/Cover Glass
- TN/IPS Panels | Custom Backlight Systems
Product Specification
| Item | ZH101HH058-02 |
| Screen Size | 10.1 Inch |
| Resolution | 1280x800 |
| Brightness | 1000 cd/㎡ (Typ.) |
| Interface | LVDS, 40 pins Connector |
| Backlight Type | 42-Chip White LED 360mA 23V |
| Display Mode | IPS, Normally Black |
| Active Area | 216.96(W) x 135.6(H) mm |

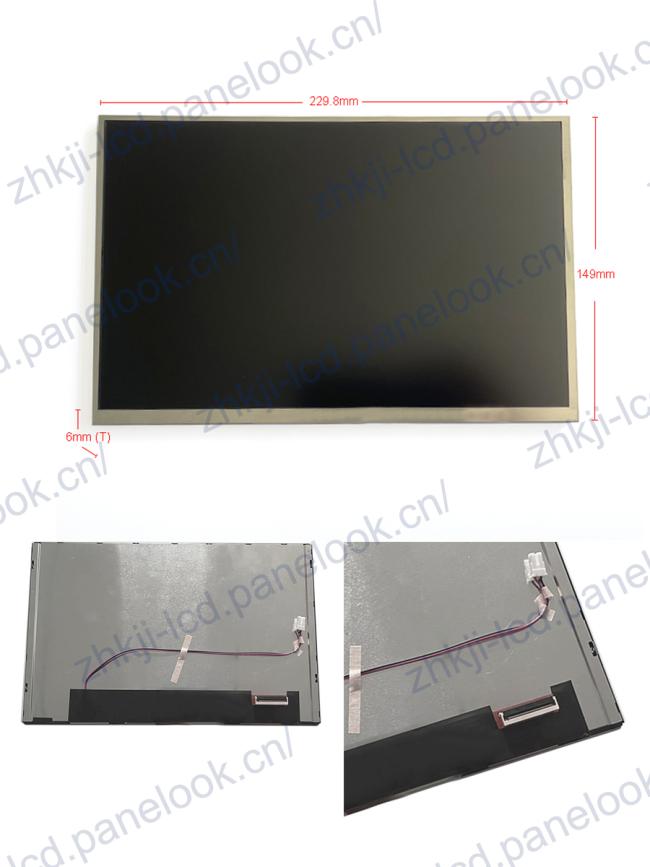

| Outline Dimensions | 229.8(W) x149.0(H) x6.0(T) mm |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional RTP touch panel |

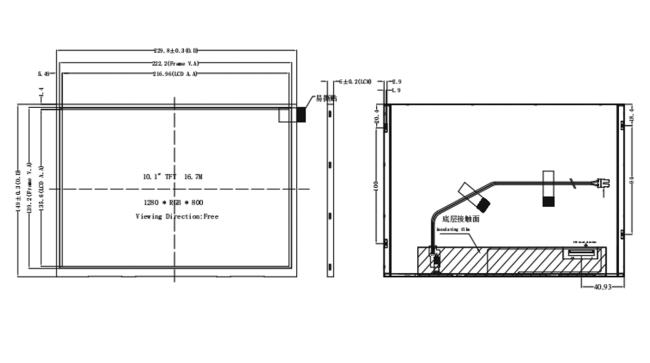

Product Drawing
Why Choose ZhanHui High Brightness LCD Display?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
