5.5 inch OLED Display 1080x1920 MIPI LCD Panel IPS 240nits Wide Temperature Industrial Grade Custom Touch Screen
5.5 inch OLED Display 1080x1920 MIPI LCD Panel IPS 240nits Wide Temperature Industrial Grade Custom Touch Screen
Introducing the ZH0550E0041-06, a high-performance 5.5 inch OLED display module designed for robust industrial and commercial applications. This 1080x1920 MIPI LCD panel delivers sharp Full HD visuals on an IPS (Normally Black) screen, ensuring wide viewing angles and consistent image quality. With a brightness of 240 cd/m², LED backlight, and a wide operating temperature range (-20℃ to +60℃), it is built for reliability in diverse environments. The module features a compact design and supports an optional custom touch screen (CTP or RTP) to meet specific interactive needs.
Core Advantages
- FHD IPS Display with Full Viewing Angle
Featuring a 1080x1920 resolution and IPS technology, this 5.5 inch OLED display delivers sharp, accurate visuals. The “Normally Black” mode combined with wide viewing angle ensures consistent color and clarity from any direction, which is critical for industrial controls and medical monitoring devices.
- High-Speed MIPI Interface for Seamless Integration
Utilizing a 1080x1920 MIPI LCD panel with a 4-lane interface(40 pin), the module ensures high-speed data transmission and compatibility with mainstream embedded processors. This enables smooth operation and responsive performance for complex UI applications.
- Industrial-Grade Wide Temperature Reliability
Engineered for durability, it operates reliably from -20℃ to +60℃ and withstands storage from -30℃ to +70℃. This wide-temperature stability ensures consistent performance in challenging environments like warehouses, vehicles, and outdoor portable equipment.
- Flexible Custom Touch Screen & Design Support
We offer comprehensive integration support for a custom touch screen (Capacitive or Resistive). Customization extends to cover lens treatments (AG/AR/AF), FPC adaptations, and mechanical fitting to meet specific project requirements.
Application Scenarios
- Industrial handheld terminals & portable testing devices
- Vehicle dashboard & navigation systems
- Medical instrument displays
- High-end smart home control panels
- Commercial POS & self-service kiosks
Your Partner for High-Performance Display Solutions
We specialize in providing:
-
Industrial TFT & OLED displays (0.96″ to 32″)
-
High-brightness solutions up to 2500 cd/m²
-
Extended temperature operation (-40℃ to +95℃)
-
End-to-end touch integration & optical bonding
-
Custom backlight design & driver board development
Product Specification
|
Model Number |
ZH0550EO041-06 |
|
Display Size |
5.5 inch (optional OLED or TFT LCD module) |
|
Resolution |
1080x1920 |
|
Display mode |
IPS,Normally Black |
|
Brightness |
240cd/m² (Typ.) |
|
Backlight Type |
LED |
|
Viewing Angle |
ALL O'CLOCK |
|
Active Area |
67.82*(H) *120.58(V) |
|

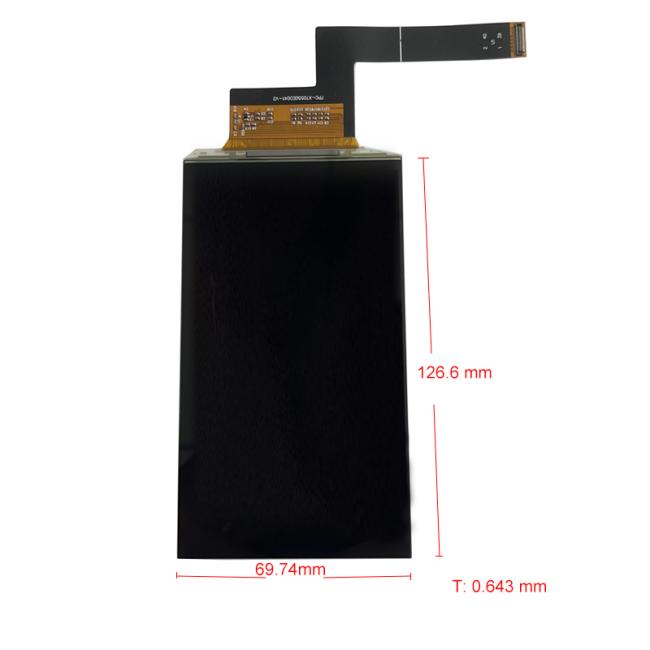

Outline Dimension |
69.74(H) *126.6(V) *0.643(T) |
|
Drive IC |
RM67199 |
|
Interface |
MIPI 4 Lanes, 40pins Connector |
|
Operating Temperature |
-20℃~+60℃ |
|
Storage Temperature |
-30℃~+70℃ |
|
Touch Panel |
Optional CTP or RTP Touch Panel |

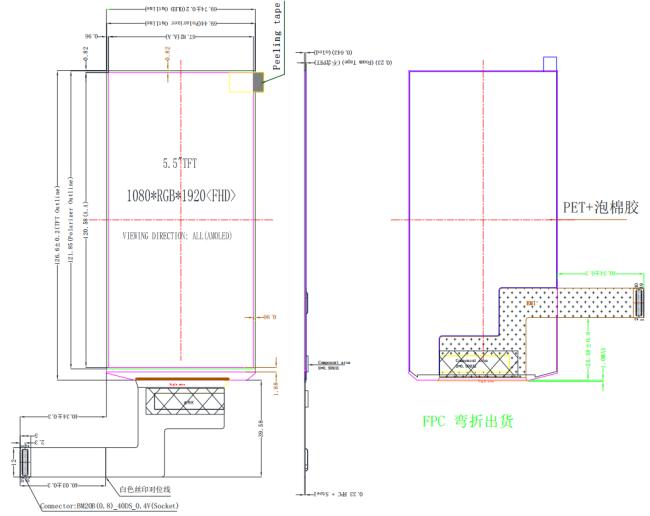

Product Drawing
Why Choose ZhanHui LCD Displays?
- 10+ years of specialization in industrial and vehicle-mounted LCD solutions
- Dedicated engineering team providing one-stop integrated support
- Flexible customization with fast response to project requirements
- Certified quality control (IATF 16949, ISO 9001)
- Global logistics and local service support
- Competitive cost-performance ratio
FAQ
1. What is the minimum order quantity?
MOQ varies by model. Please contact our sales team for details.
2. Can I order a sample for testing?
Yes, we recommend sampling before bulk orders. Samples are available upon request.
3. How do you ensure product quality?
We conduct pre-production sampling and final inspection before shipment to ensure consistency and reliability.
4. What products do you offer?
We supply TFT LCD modules, high-brightness displays, touch screens, and OLED displays for industrial applications.
5. Why choose ZhanHui over other suppliers?
We stand out with deeply customizable solutions—tailored to your exact specs, from display performance to mechanical integration.
Get Your Solution & Support
Let’s integrate this display into your system:
- ✅ Request a quote & datasheet
- ✅ Discuss customization: size, brightness, interface, touch
- ✅ Receive technical integration support
Service & Warranty Commitment
We are committed to reliable products and seamless collaboration for every business partner.
- Quality Assurance: Industrial-grade testing throughout production
- Expert Support: End-to-end guidance from selection to after-sales
- Flexible Cooperation: Samples, pilot runs, and volume production
- Global Reach: Efficient logistics with local technical support
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
