2.1 Inch High Brightness 1000nits IPS MIPI 2 Lanes LCD Display 480x480 Round Wide Temperature TFT Display
2.1 Inch High Brightness 1000nits IPS MIPI 2 Lanes LCD Display 480x480 Round Wide Temperature TFT Display
The ZH021BH001-02B is an industrial-grade 2.1 inch high brightness lcd display featuring a unique circular form factor. Designed for high-end industrial and outdoor applications, this 480x480 round wide temp tft display offers superior sunlight readability with its 1000cd/m² luminance. It utilizes a high-performance ips mipi lcd display panel with 85/85/85/85 wide viewing angles, ensuring crystal-clear visual performance from any direction. Driven by the ST7701S IC, this module supports a MIPI 2 Lanes (30 pins) interface for high-speed data transmission and low power consumption.
Key Advantages
- High Resolution & IPS Clarity
Features a sharp 480x480 resolution on a 2.1-inch round active area. Combined with its IPS mipi lcd display technology, it delivers consistent image quality and wide viewing angles of 85/85/85/85.
- High Brightness Performance
Offers a typical luminance of 1000 cd/m², ensuring excellent visibility in various lighting conditions.
- Industrial Interface & Reliability:
Equipped with a stable MIPI 2-lane interface (30-pin connector), designed for seamless and reliable integration into professional systems.
- Wide-Temperature Operation
Operates from -20℃ to +70℃, ensuring stable performance as a true industrial wide-temperature display module.
- Flexible Customization Support
We offer extensive customization options including touch panel integration (CTP, RTP), tailored FPC/connectors, backlight adjustment, cover glass treatment (LOGO, camera hole, AR/AG/AF coatings), and board/interface modifications.
Application Scenarios
- Industrial handheld terminals and portable measurement devices
- Advanced medical monitoring and diagnostic equipment
- Automotive dashboard displays and vehicle control panels
- Smart home control panels and appliance interfaces
- Ruggedized portable communication devices
Company's focus on the core
- Industrial-Grade TFT/OLED Displays (0.96" to 32")
- Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
- Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
- Touch Solutions: Resistive/Capacitive/Cover Glass
- TN/IPS Panels | Custom Backlight Systems
Product Specification
| Item | Specifications |
| Part Number | ZH021BH001-02B |
| Size | 2.1inch |
| Resolution | 480x480 |
| Display Mode | IPS(Normally Black) |
| Viewing Angle | 85/85/85/85 (Typ.) |
| Active Area | 53.28*(H) * 53.28(V)mm |

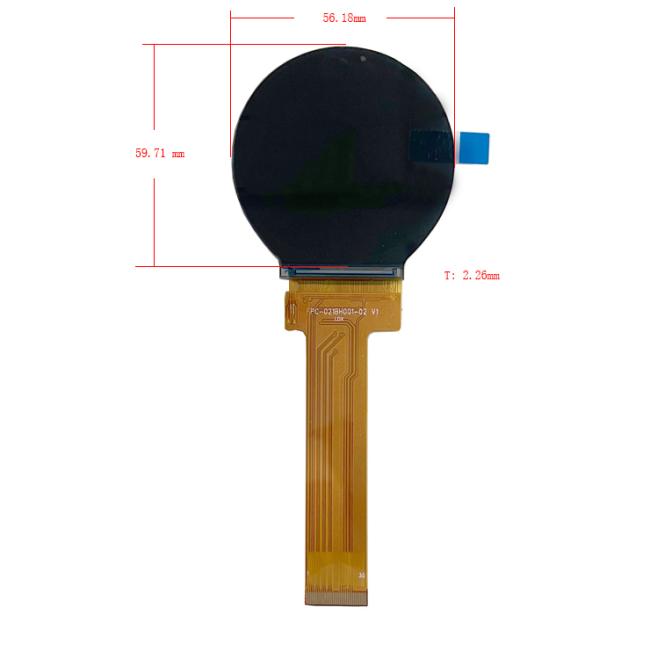

| Module Size | 56.18(H) *59.71(V) *2.26(T)mm |
| LCM Luminance | 1000cd/m² (Typ.) |
| Backlight Type | 4-chip WLEDs, 6V/80mA |
| TFT Driver IC | ST7701S |
| Interface | MIPI 2 Lanes, 30pins |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional Touch Panel |

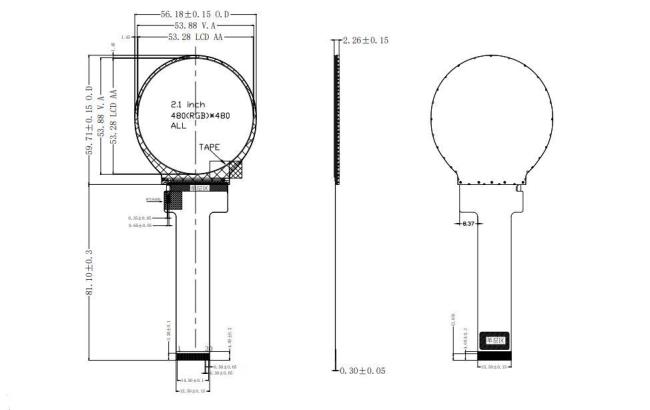

Product Drawing
Why Choose ZhanHui LCD Displays?
- 10+ years of specialization in industrial and vehicle-mounted LCD solutions
- Dedicated engineering team providing one-stop integrated support
- Flexible customization with fast response to project requirements
- Certified quality control (IATF 16949, ISO 9001)
- Global logistics and local service support
- Competitive cost-performance ratio
FAQ
1. What is the minimum order quantity?
MOQ varies by model. Please contact our sales team for details.
2. Can I order a sample for testing?
Yes, we recommend sampling before bulk orders. Samples are available upon request.
3. How do you ensure product quality?
We conduct pre-production sampling and final inspection before shipment to ensure consistency and reliability.
4. What products do you offer?
We supply TFT LCD modules, high-brightness displays, touch screens, and OLED displays for industrial applications.
5. Why choose ZhanHui over other suppliers?
We stand out with deeply customizable solutions—tailored to your exact specs, from display performance to mechanical integration.
