The Most Suitable SF6 Quantitative Leak Detector For Finding Leaks, Suitable For Use In Workshops
The most suitable quantitative leak detector for finding leaks, suitable for use in workshops, LF-1D+
Search for leakage points, Cost-Effective, Low Maintenance Cost, LF-1D+
SF6 Quantitative Leak Detector, Cost-Effective, Low Maintenance Cost, Search for leakage points
Our company is the drafting unit of the Chinese national standard GB/T11023-2018 "High voltage switchgear - SF6 gas sealing test method".
Used by thousands of Chinese electrical equipment manufacturers
LF-1D+ SF6 Quantitative Leak Detector adopts the principle of low-voltage ionization in a high-frequency magnetic field and has the outstanding advantages of fast response and high sensitivity. It is the best choice for finding leakage points.
In terms of the two parameters of response time and sensitivity, it far surpasses the leak detectors based on the principle of infrared dual-waves.
Overall dimensions: 430*275*425mm
| Item | LF-1D+ SF6 Quantitative Leak Detector |
|---|---|
| Measurement Accuracy | ≥10, it can detect SF6 with a concentration of 0.01ppm Measurement Range |
| Measurement Range | 0.01ppm - 1000ppm |
| Response Time | No more than 1 second for 10, that is, for 100ppm gas |
| Indication Method | LCD digital display. The greater the leakage concentration, the greater the change of the digital value. At the same time, the frequency of the buzzer sound changes more significantly. |
| Vacuum Hose | 4 meters (the towable length is 6 meters) |
| Power Input | Cable 2 meters (the towable length is 6 meters) |
| Input Power | 220V±22V, 50Hz±2Hz |
| Overall Dimensions | 430×275×429mm (Length * Width * Height) |
| Packaging | Foam carton |
| Continuous Working Time | Generally no more than 8 hours |
| Ambient Temperature | 5℃ - 50℃ |
| Ambient Humidity | It can adapt to environments with humidity over 80% |
| Power | 250W |
| Net Weight | Approximately 19.8KG |

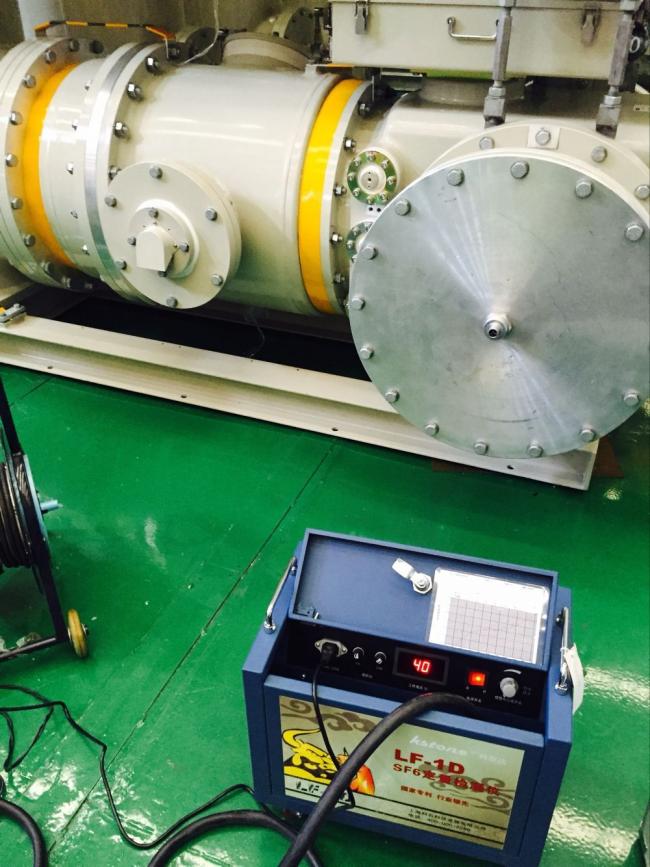

Leak detection for Kema certification
Why Choose Kstone?
1. Top-tier Technical Authority
Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications
2. One-stop SF6 Solution Range
Portable detectors to recovery systems | 100% accredited by national labs
3. Customizable Turnkey Services
Tailored equipment design | On-site installation & debugging
4. Global Support & Proven Reputation
1000+ global clients | Localized after-sales service
5. Eco-compliant & Cost-efficient
Aligns with EU F-gas Directive | Zero-emission SF6 handling
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
