High-Capacity SF6 Recovery Unit 110m³/h Oil-Free Compressor with 1200L Storage for GIS/GIL Maintenance
As the principal drafter of China's DL/T1353-2024 technical specification for SF6 treatment systems, our solutions define industrial benchmarks. SF6 recovery equipment is custom-engineered with configurable features: negative-pressure recycling, oil-free compressionOil (optional), variable storage capacities, and fully automated operations.
The KSLH-110Y/160-1200WZ high-capacity automated system is optimized for 550kV insulation pot withstand voltage testing. It integrates a 110m³/h oil-free main compressor, 160m³/h negative-pressure compressor (0.1MPa suction), 63m³/h pipeline vacuum pump (≤5Pa ultimate vacuum), and 1200L 304 stainless steel horizontal storage tank for efficient high-voltage SF6 management.
| Component | Specification |
|---|---|
| Main Compressor | 110m³/h, oil-free, air-cooled piston |
| Negative-Pressure Compressor | 160m³/h, 0.1MPa suction pressure |
| Pipeline Vacuum Pump | 63m³/h, ≤5Pa ultimate vacuum |
| Liquid Storage Tank | 1200L horizontal, 304 stainless steel(optional), |

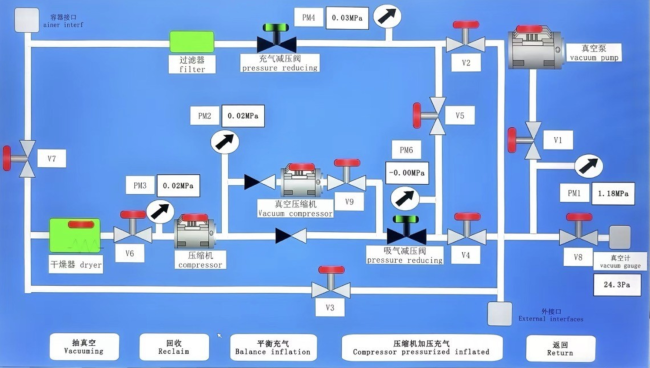

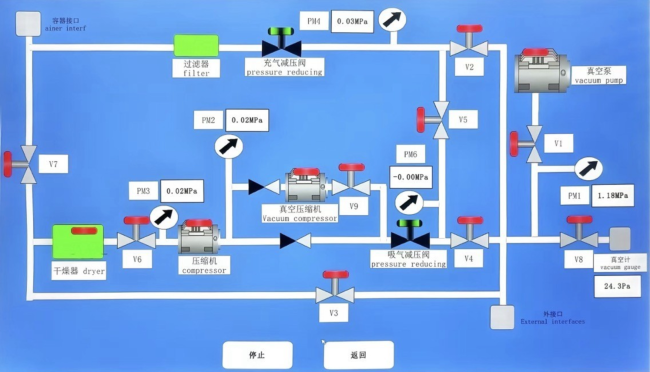

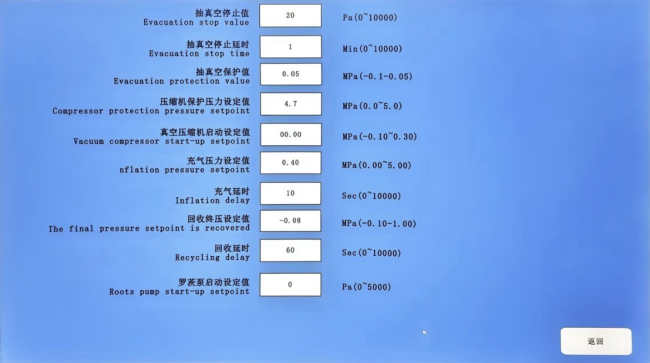

| Control System | PLC-based with HMI touchscreen |
| Filtration Module | 0.1μm particle filter, 3ppm moisture trap |
| Power Supply | 3Φ 380V 50Hz, 45kW total power |
- Compression Types: Oil-free / lubricated compressor selections
- Storage Capacity: 500L–2000L tank volume variants
- Functional Add-ons: Adsorption dehydration , gas purity analyzer
- Mobility Solutions: Trailer-mounted
- Compliant with DL/T1353-2024 and IEC 62271-403 standards
- Rated for GIS/GIL systems up to 1100kV voltage class
- ISO 14001:2015 environmental management certified
- Top-tier Technical Authority
Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications - One-stop SF6 Solution Range
Portable detectors to recovery systems | 100% accredited by national labs - Customizable Turnkey Services
Tailored equipment design | On-site installation & debugging - Global Support & Proven Reputation
1000+ global clients | Localized after-sales service - Eco-compliant & Cost-efficient
Aligns with EU F-gas Directive | Zero-emission SF6 handling
