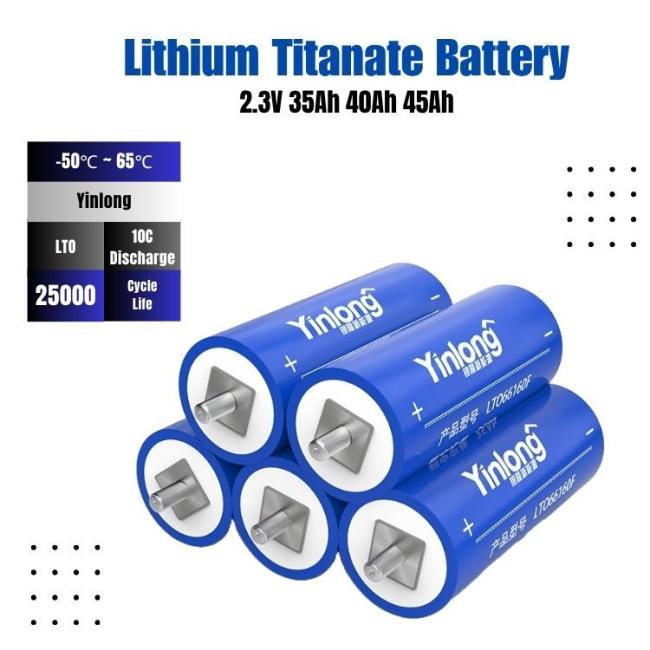

Yinlong 66160 High Discharge Rate LTO Battery Cell 2.3V 30Ah 35Ah 40Ah 45Ah Lifep4 Battery Cell
Yinlong 66160 High Discharge Rate LTO Battery Cell 2.3V 30Ah 35Ah 40Ah 45Ah Battery
Yinlong Lithium Titanate (LTO) batteries are engineered for exceptional performance, safety, and longevity. Based on advanced lithium titanate oxide technology, these batteries offer ultra-fast charging, outstanding low-temperature performance, and an industry-leading lifespan. Designed for high-demand applications such as electric buses, energy storage systems, industrial equipment, and military-grade devices, Yinlong LTO cells provide reliable power under the most challenging conditions.
Key Features:
-
Ultra-Fast Charging
Achieves 80% charge in under 10 minutes, dramatically reducing downtime. -
Exceptional Lifespan
Over 25,000 charge-discharge cycles with minimal capacity degradation. -
Wide Operating Temperature Range
Performs reliably from -40°C to +60°C, ideal for extreme environments. -
Outstanding Safety
LTO chemistry is thermally stable and highly resistant to thermal runaway, overcharging, and short circuits. -
High Power Output
Capable of high discharge rates for applications requiring instant energy delivery. -
Low Internal Resistance
Ensures high efficiency and minimal heat generation, even under heavy load.
Specification :
| Item | Specification | |
| 1 | Chemistry | LTO |
| 2 | Nominal Capacity | 35Ah /40AH /45AH |
| 3 | Nominal Voltage | 2.3V |
| 4 | AC-impedance(1000Hz) | 0.2 ~ 0.7mΩ |
| 5 | Weight | 1.22 ± 0.1KG |

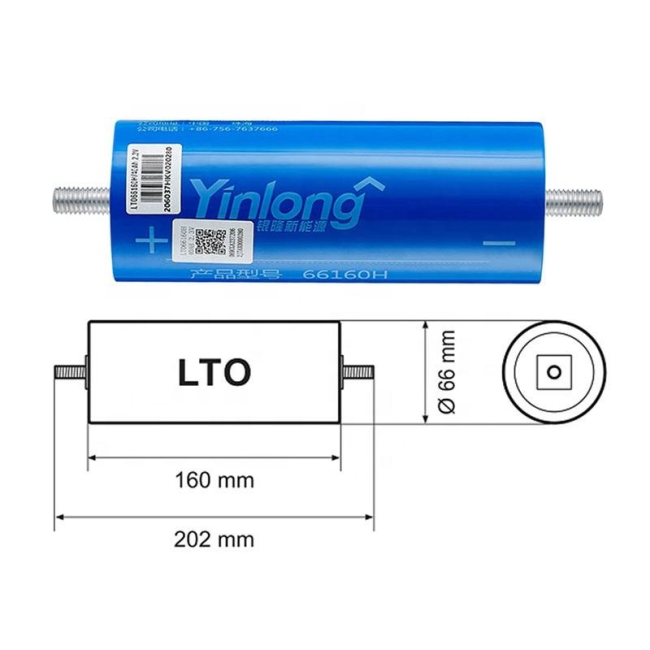

| 6 | Dimension (mm) Diameter x Height | 66X 160 |
| 7 | Maximum Charge Current at Room Temperature | 10 C (Continuous) |
| Charging Voltage | 2.9V | |
| 8 | Maximum Discharge Current at Room Temperature10 | 10C~20C |
| Discharge End Voltage | 1.6V(>0℃),2.0V(≤0℃) | |
| 9 | Max Operating Temperature Range | |
| Charge | 0℃ ~ 65℃ | |
| Discharge | -35℃ ~ 65℃ | |
| *Cells should be stored at 20%SOC-40%SOC or the voltage is between 3.275V and 3.305V. | ||
Applications :
-
Public electric transportation (e-buses, trams)
-
Port and airport AGVs
-
Fast-charging EV infrastructure
-
Frequency regulation and energy storage
-
Military communications and mobile base stations
-
Cold climate backup power systems
