Stainless Steel Manganese Sand Filter 1000-3000L For Well Water
1. Manganese Sand and Quartz Sand and Activated Carbon Water Purifier Technical Parameters.
| Item | Value |
|---|---|
| Flow Rate | 1000L/h,2000/h,3000/h |
| App-Controlled | NO |
| Filtration Stages | 1 |
| Ultrafiltration Filter Life | More Than 3 Years |
| Voltage (V) | 0 |
| Type | Landing,Terminal water purifier |
| Function | self-cleaning, Removes Bacteria |
| Application | Commercial, Garage, Hotel, Household |
| Power Source | Intelligent backwash |
| Private Mold | Yes |
| logo/pattern | 3D Printing |
| Place of Origin | shenzhen,china |
| Model Number | H900-2 Remove iron and manganese 3-8tons |
| Power (W) | 0 |
| Operating Language | English |
| Application | Water Treatment |
| Advantage | Multi-functional Machine |
| Material | 304 Stainless Steel |
| Filter material | Manganese |
| Feed water source | Municipal Tap Water |
| Temperature | 5-38 |
| Inlet pressure | 0.1Mpa-0.4Mpa |
| Input/Output/Sewage outlet | 1 "inch internal thread |
2. Factory Profile.
Shenzhen Hanlan Environmental Protection Technology Co., Ltd, was established in 2010and was recognized as a National High-tech Enterprise of China in 2024. The company focuseson the water purification field, possessing global R&D innovation, intelligent manufacturing,supply chain integration, and software and hardware service capabilities. We hold over 100national patents and has an annual production capacity of 5 million units, providing OEM and ODM solutions for over 100 brands worldwide.
3. Manganese Sand and Quartz Sand and Activated Carbon Water Purifier Water Purifier Key Features and Benefits.
The typical configuration is as follows:
| Filtering stage | Filter element type | Function |
|---|---|---|
| 1 | Manganese Sand |

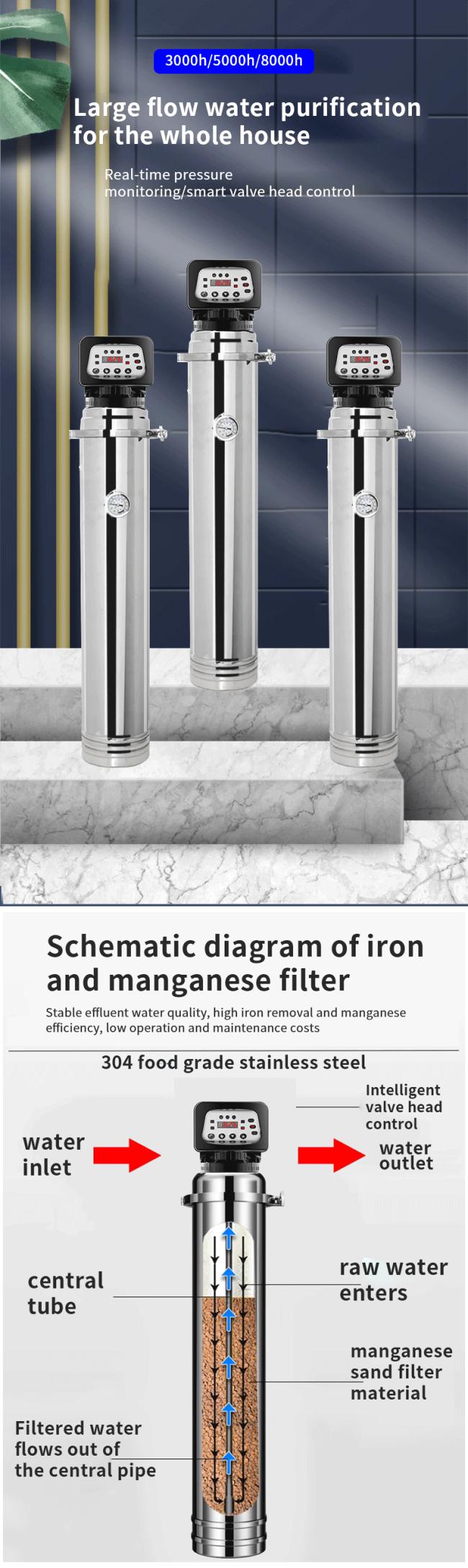

Key features: High-efficiency iron and manganese removal: Through the surface oxide layer, divalent iron (Fe²⁺) and divalent manganese (Mn²⁺) in water are converted into insoluble trivalent iron (Fe³⁺) and tetravalent manganese (Mn⁴⁺). The iron removal rate can reach 99%, and the manganese concentration can be reduced to below 0.1 mg/L. No chemical additives required: It only needs to be used in conjunction with aeration or contact oxidation equipment, without the need to add additional chemicals. It is environmentally friendly and has low operating costs. Long service life and stability: High mechanical strength, stable chemical properties, service life can reach 3 to 5 years, and the backwashing loss rate is low. Composite filtration structure: It is often combined with quartz sand, activated carbon, etc., to form multi-layer filtration and improve the accuracy of pollution interception. Application scenarios:
|
| 2 | Quartz Sand |
Key features of Mod: High-efficiency suspended solids removal: Through mechanical retention and surface adsorption, it can remove suspended solids, colloids, bacteria, etc., and the effluent turbidity is less than 5 NTU. Adaptive filtration: The filter bed automatically forms a "loose at the top and dense at the bottom" structure, which can adapt to different water quality conditions and has a good backwashing effect. Acid and alkali resistance and anti-pollution: It has a wide pH range of application (2-13), strong oxidation resistance, and is suitable for treating water with high turbidity. Fast filtering: The filtering speed reaches 7-30 m/h, suitable for high-traffic scenarios. Application scenarios:
|
| 3 | Activated Carbon |
Key features: Adsorb broad-spectrum pollutants: Effectively remove residual chlorine, organic compounds (VOCs), pesticides, odors and some heavy metals (such as lead and mercury). Improve taste and safety: Significantly reduce the chlorine taste, enhance the palatability of drinking water, and lower the risk of water-borne diseases. Environmental protection and economy: Replace bottled water and reduce plastic pollution; It is easy to maintain and the replacement cycle is 6 to 12 months. Multi-functional combination: It is often used in combination with quartz sand and manganese sand to enhance the comprehensive purification effect (such as adsorbing organic matter after removing iron and manganese). Application scenarios:
|
The advantages of the combined system
- Synergistic purification: Manganese sand removes iron and manganese → Quartz sand intercepts suspended solids → Activated carbon adsorbs organic matter, forming a hierarchical treatment.
- Economical and efficient: Reduce the load on a single filter material, extend the overall service life, and be suitable for complex water qualities.
- Flexible adaptation: The filter material ratio can be adjusted according to demand (for example, high-manganese groundwater requires manganese sand with MnO₂ content ≥35%).
