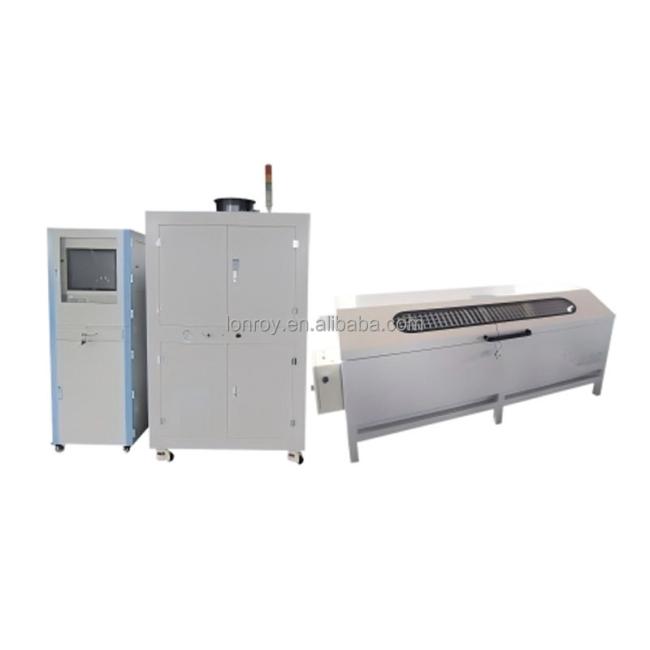

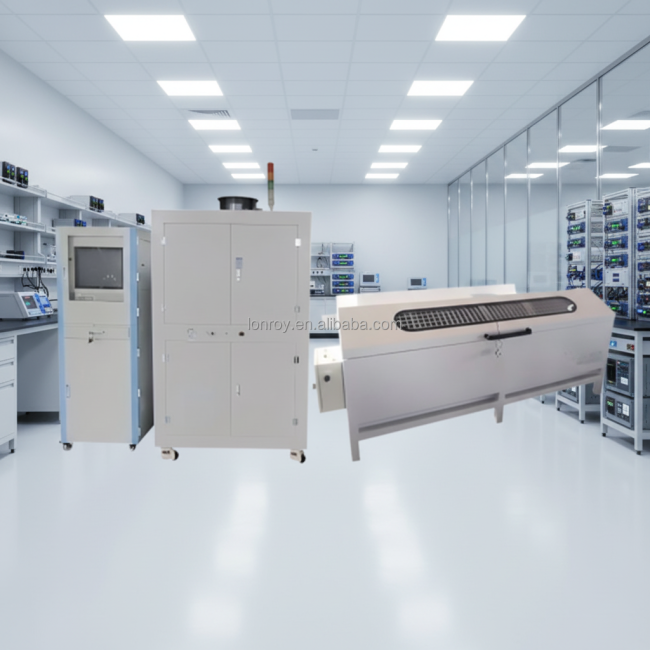

Hydraulic Cylinder Test and Load Test Bench Fully Automatic Computer Control Hydraulic Cylinder Test Stand

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: Negotiable
Brand: LONROY
Product Description

Hydraulic Cylinder Test and Load Test Bench Fully Automatic Computer Control Hydraulic Cylinder Test Stand

Product Description



Standards Complied With

GB/T 15622-2005 Hydraulic Cylinder Test Methods, JB/T 10205-2010 Hydraulic Cylinder Technical Conditions



Application Scope

Hydraulic cylinder factory testing and load testing



Control Method

Fully automatic computer control



Test Items

Related test items for trial operation, starting pressure characteristics, pressure resistance, leakage, buffering, load efficiency, high temperature, durability, and stroke inspection

Hydraulic Cylinder Test and Load Test Bench Fully Automatic Computer Control Hydraulic Cylinder Test Stand

Technical Specification

Test Pressure

1-35MPa, adjustable

Hydraulic Cylinder Starting Pressure

0-1MPa, controlled by proportional throttle valve

Pressure Resistance

5-60MPa, adjustable

Test Flow Rate

Maximum 200L/min

Maximum Number of Test Specimens

1 piece/time

Applicable Products

Maximum hydraulic cylinder bore diameter range: ≤450mm, maximum hydraulic cylinder stroke ≤15m
