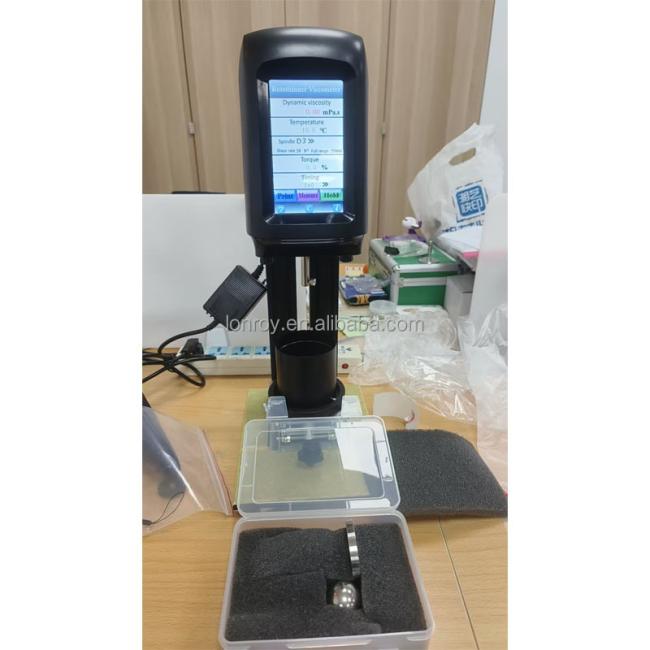

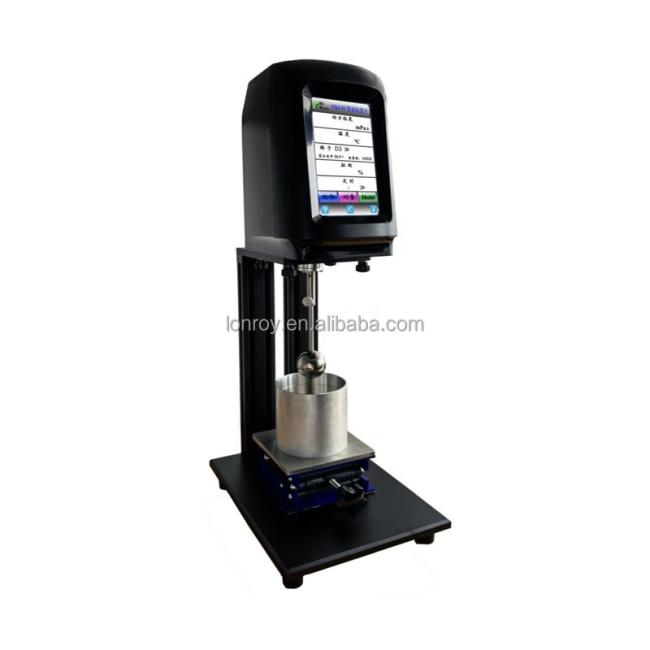

ISO 2884 BS 3900 Dilution Rotational Viscometer Special Viscometer for Paints Coatings Lab Rotating Viscometer Viscosity Meter
ISO 2884 BS 3900 Dilution Rotational Viscometer Special Viscometer for Paints Coatings Lab Rotating Viscometer Viscosity Meter
Technical features
5-inch touch screen, easy to operate, rich display information
Anti-static housing
RTD temperature probe is standard
ARM chip processor, faster data processing speed
Manual lifting frame structure design, reduces the requirement for test liquid level control
Complies with coating industry standards ISO 2884-2, BS 3900 A7
Stepper motor direct drive, no gears, accurate speed
Can lock viscosity value, temperature value, and timing function
Viscosity value display continuously changes
Equipped with an automatic test data output printing port
Computer full-range linear correction
AC power adapter 100V-240V, good anti-interference performance
RISO 2884 BS 3900 Dilution Rotational Viscometer Special Viscometer for Paints Coatings Lab Rotating Viscometer Viscosity Meter
Technical Specification
|
Model |
DRV-1T |
|
Measuring Range (mPa·s) |
Spindle D1: Provides a shear rate of 200 s-1, for fluids with viscosity of 22–2200 mPa·s Spindle D2: Provides a shear rate of 44 s-1, for fluids with viscosity of 75–7500 mPa·s Spindle D3: Provides a shear rate of 20 s-1, for fluids with viscosity of 350–55000 mPa·s |
|
Spindle Speed (RPM) |
562 RPM ±0.1 |
|
Measuring Vessel |
Compliant 250ml measuring cup (Inner diameter 74mm, Height 74mm) |
|
Number of Spindles |
1 each of D1, D2, D3 |
|
Measurement Accuracy |
±1.0% of full scale |
|
Repeatability |
±0.5% |
