Economical Prefab Steel Framed Industrial Warehouse Sheds, Custom Design for Large Span Storage Buildings
Economical Prefab Steel Framed Industrial Warehouse Sheds, Custom Design for Large Span Storage Buildings
|
Structure
|
Part
|
Specification
|
|
Main Structure
|
Frame Column and Beam
|
Q355B H/I Section & As drawings
|
|
Welding
|
Automatic Submerged Arc Welding
|
|
|
Rust Removing
|
Shot Blasting
|
|
|
Surface Processing
|
Coating or Galvanized
|
|
|
High Strength Bolt
|
Grade 10.9
|
|
|
Secondary Structure
|
Purlin
|
C/Z Purlin Size from C120-C320,Z100~Z300,
|
|
Angle Brace
|
Q235B L-Steel
|
|
|
Cross Brace/X Brace
|
Q235B Round Pipe
|
|
|
Tie Bar
|
Q235B Round Bar
|
|
|
Roof System
|
Roofing Material
|
Sandwich Panel-Insulated PU/Glasswool/Rock Wool/EPS 50mm-200mm
|
|
Skylight Panel
|
1.2mm FRP
|
|
|
Gutter
|
Steel Gutter Galvanized/Coated 2.0mm-3.0mm
|
|
|
Rainspout/Down Pipe
|
PVC Pipe
|
|
|
Wall System
|
Wall Material
|
Sandwich Panel-Insulated PU/Glasswool/Rock Wool/EPS 50mm-200mm
|
|
Accessories
|
Sealant, Self-tapping Screw etc
|
|
|
Edge Cover
|
Color Steel
|
|
|
Ventilator
|
Unpowered Axial-Flow Ventilator or Monitor Roof
|
Customizable
|
|
Door
|
Electric Rolling Door/Sliding Door/Access Side Door
|
Customizable
|
|
Window
|
Aluminum/PVC
|
Customizable
|
|
Crane
|
1-200 T
|
Customizable
|
|
Packing
|
Main steel frame without packing load in 40' OT;
|
|
|
Roof and wall panel load in 40' HQ!
|
||

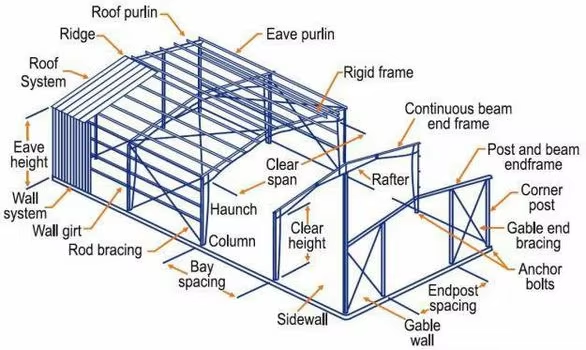

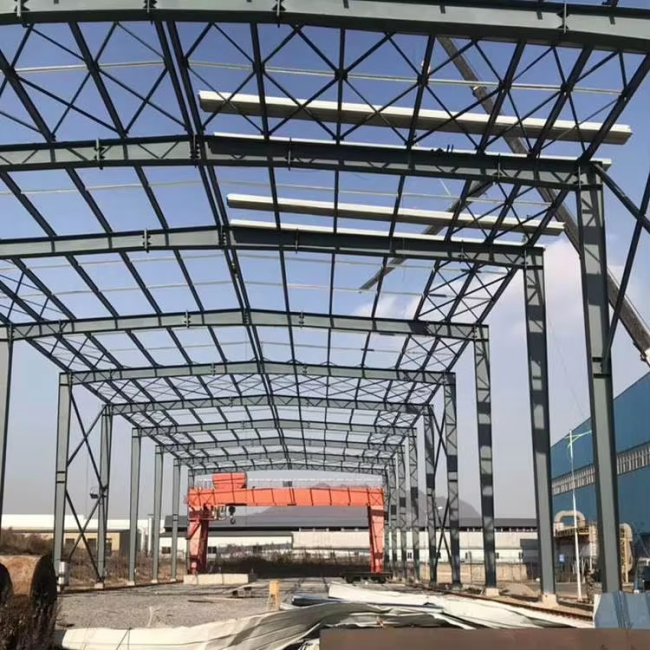

Steel structure workshop mainly refers to the main load-bearing components made of steel, including steel columns, steel beams, steel structures, and steel roof trusses. Each component is connected by welds, bolts or rivets.
Steel structure workshop have the characteristics of high fire resistance, strong corrosion resistance, and spatial flexibility. And the construction efficiency and cost-effectiveness are very high. Steel structure warehouses have become the core infrastructure of modern logistics systems through standardized design, modular construction and intelligent upgrading.
Uses include large factories, warehouses, supermarkets, entertainment centers, and modular steel structure garages.

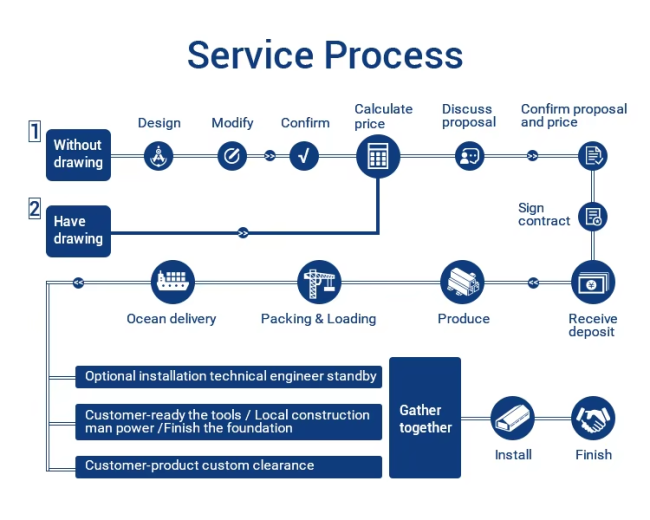

Please kindly inform us of the information below if you are interested in our products.
1. Project Progress: Is Land Purchased? Is it licensed by the government?
2. Usage: for warehouse, workshop, showroom, etc.
3. Location: In which country will it be built?
4. Local Climate: Wind speed, Snow load (max. Wind speed)
5. Design: Please provide the design drawing. Or do you need us to design for you?
6. Dimension: Length*width*height
7. Crane Beam: Do you need crane beam inside the steel structure?
8. Roof and Wall: determine the panel material, such as color steel panel, and metal sandwich panel.
9. Windows and Doors: what material, quantity, and type?
