Long Span Durable Industrial Steel Structure Workshop Building
Long Span Durable Industrial Steel Structure Workshop Building
Building material component list
| Anchor bolt | M20 |
| High streng bolt | M20, 10.9s |
| Shear nail | M16 |
| Common bolt | M20 |
| Brace | M12 |
| Tie rod | Ø12 |
| Column(Q345B) | Square tube250*250*10*10 Square tube250*250*5*5 |
| Roof beam(Q345B) | HN340X250X9X14 |
| Roof frame beam(Q345B) | HN294X200X8X12 |
| Floor main beam(Q345B) | HN294X200X8X12 |
| Floor secondary beam(Q345B) | HN244X175X7X11 |
| Staircases(Q235B) | H200X200X6X8+5mm chequered plate |
| Stair beam(Q235B) | H300X200X6X8 |
| Roof purlin | C140X60X20X3.0 |
| Connecting plate | 3~8mm |

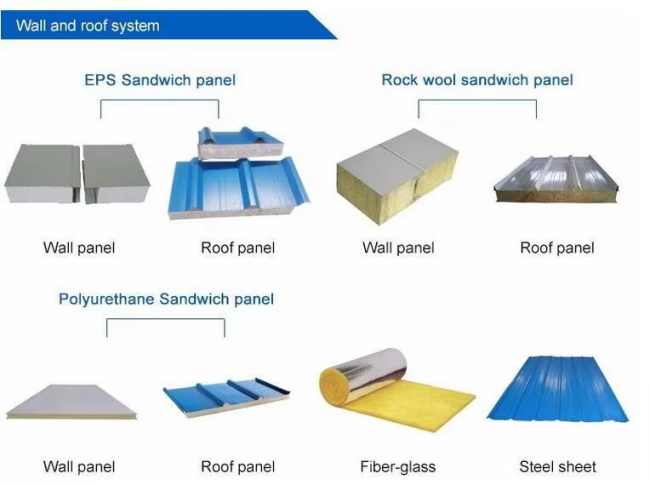

| Roof tile | 75mm rock wool,color sheet both sides 0.426mm |
| Wall panel | 75mm rock wool,color sheet both sides 0.426mm |
| Floor deck |
1.0mm |
| Steel door |
900*2100 |
| Aluminum windows | 2000*1500 |
| Zinc steel handrails | Square tube80X40+40+30+20 |
| Trimming | 1.0mm galvanized sheet, color steel sheet |
Steel structure workshop features
a.Low maintenance costs
b.Environmentally friendly, recycling.
c.Flexibility when fixing doors, windows and interior partitions
d.Steel structure construction is strong, durability and stability.
e.Steel components is resistant to termites and other destructive insects.
f.Long service life for more than 50 years
g.Fast construction ,easy installation and convenient to transport.
Applications
The steel structure building is widely used in the construction of buildings such as warehouses, workshops,
and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers etc.
Steel structure is the cost leader for most projects in materials and design. It is inexpensive to manufacture and erection, requires less maintenance than other traditional building methods and it is relatively cheap compared to other building materials
It can withstand extreme forces or harsh weather conditions, such as strong winds, earthquakes, hurricanes and heavy snow. A well-built steel structure can last up to 50 years if maintained well.They are also unreceptive to rust and, unlike wood frames, they are not affected by termites, bugs, mildew.
Steel is easy to mold into various shapes and can be easily modified or expanded, allowing for innovative architectural designs and future changes to the structure. Steel allows for long column-free spans and you can have a lot of natural light if you want it in any shape of structures.

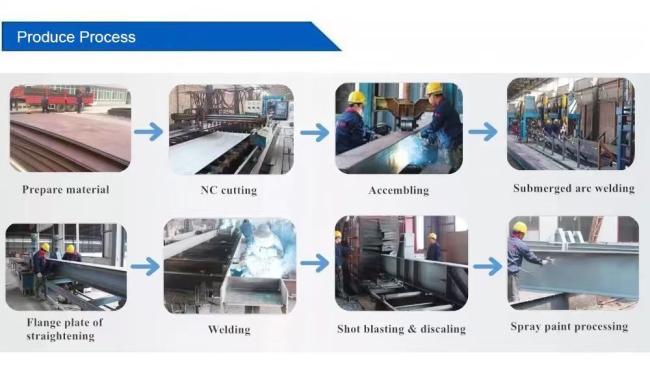

Steel structures are fabricated at factory and rapidly erected at construction site by skilled personnel that makes safe construction process. Industry surveys consistently demonstrate that steel structures is the optimal solution in management.
