Fast Build Steel Structure Warehouse Peb Industrial Metal Building

Price Negotiable

Price: USD 68-100 per sqm

MOQ: 500 sqm

Delivery Time: 25 days

Brand: KXD

Product Description

Fast Build Steel Structure Warehouse Peb Industrial Metal Building

Why choose PEB Industrial Metal Building?

Short construction period: Compared with the traditional concrete structure, the construction period for PEB Industrial Metal Building is about 1/3 shorter than the traditional concrete structure
Improve investment efficiency: Short construction period can reduce the pressure of capital occupation, reduce the risk of market change, and improve the investment efficiency of PEB Industrial Metal Building.
Reduce foundation cost: The requirement of PEB Industrial Metal Building on foundation load is reduced, which can greatly reduce foundation cost and civil foundation cost.

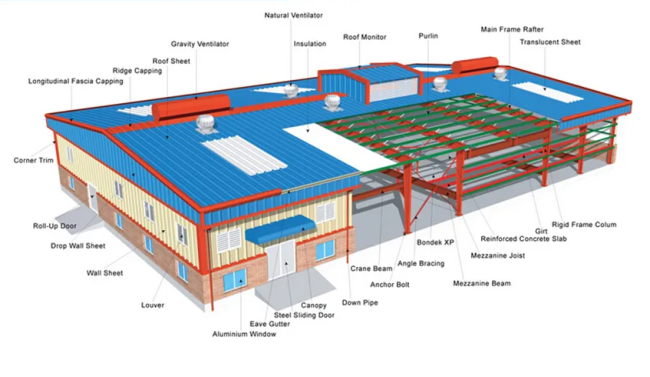

PEB Industrial Metal Building Structure show:

Main Components for PEB Industrial Metal Building?

Steel Structure Parts:(Q235 or Q355) Hot galvanized or painted	(1). Steel Column: H Section Steel
	(2). Steel Beam: H Section Steel
	(3). Withstand Wind Column: H Section Steel
	(4). Connected beam: Circular Tube
	(5). Roof Purline:cold formed galvanized C Section Steel or Z Section Steel
	(6). Wall purline: cold formed galvanized C Section Steel or Z Section Steel
	(7). End Wall purline: C Section Steel or Z Section Steel
Panel Material parts	(1). External Wall panel: (below is selectable)
	1) 50mm, 75mm or 100mm thickness EPS sandwich panel
	2) 50mm, 75mm or 100mm thickness Rockwool sandwich panel
	3) 50mm, 75mm or 100mm thickness PU OR FIBER GLASS wool sandwich panel
	4)Corrugated Galvanized Steel sheet with different Color
	(2). Internal Wall panel: (below is selectable)
	1)50mm, 75mm or 100mm thickness EPS sandwich panel
	2) 50mm, 75mm or 100mm thickness Rockwool sandwich panel, fiber glass wool sandwich panel or PU sandwich panel
	(3). Roofing panel: (below is selectable)
	1)50mm, 75mm or 100mm thickness EPS sandwich panel
	2)50mm, 75mm or 100mm thickness Rockwool sandwich panel
	3)Corrugated Steel Sheet, and insulating layer if need.
	4) 50mm, 75mm or 100mm thickness fiber glass wool or PU sandwich panel
	(4). Skylight: 820# Glass Fiber Reinforced Plastics (FRP)
Door and Window	(1). External Door ( Rolled up door or Sliding door )
	-1. Sandwich panel Sliding Door with double open
	-2. Galvanized steel opening by power-operated Roller Door
	(2). Internal Door:
	50mm Thickness EPS sandwich panel with aluminum alloy door frame
	(3). Window:
	PVC Window or aluminum alloy window frame with glass.
Drainage parts	(1).Galvanized water channel:
	2mm thickness galvanized steel water channel @ 3000mm or 2440mm/pcs
	(2). Down spout: ∅110 PVC Down spout with Accessorie
Connecting Piece	(1) Purline draw bar: ∅12
	(2) Horizontal Bracing: ∅24 Circular Tube
	(3) Knee-Bracing: L Steel
	(4) Purline Drive pipe: Φ32*2
	(5) Column Bracing: ∅24 Circular Tube

There are 4 options of installation as following:

Clients install it by themselves according our drawings and simple video.
Our engineer help our client to install on construction site.
We provide installation team to help.
Our client arrange their engineer to visit our factory and learn how to install from our engineer.

Only we get the following details, we could offer you the best price soon.

Size	length, width, eave height and ridge height?
Climate	wind speed, snow load, temperature, which city will you build in?
Roof panel material	EPS sandwich panel, fiber glass wool sandwich panel, rock wool and PU sandwich panel, or corrugated steel sheet, which you like more?
Wall panel material	EPS sandwich panel, fiber glass wool sandwich panel, rock wool and PU sandwich panel, or corrugated steel sheet, which you like more?
Window or door	The size and quantity, any special requirement please?
Other need or not	Gutter, downpipe, skylight, fans, or whether there is a crane? if yes, what's the loading weight of the crane?
