Our pre-engineered steel structure buildings provide a robust, cost-effective, and sustainable solution for modern industrial and commercial infrastructure. Manufactured using high-grade Q235B or Q345B steel, our structures are designed to withstand extreme weather conditions, including high wind speeds and seismic activities, ensuring long-term structural integrity.

Steel structure building is widely used as workshop, warehouse, factory, prefabricated house, hotel, church, garage, etc. It is durable, economic and environmentally friendly.

Steel Structure Workshop:

• Different sizes: MOQ is 100m², width × length × eave height
• Different types: Single slope, double slope, single span, double-span, multi-span, single floor, double floors
• Different Bases: Cement and steel foundation bolts
• Different Columns and Beams: Material Q345(S355JR) or Q235(S235JR) steel, all bolt connections, straight cross-section or variable cross-section
• Different bracings: X-type or V-type or other type bracing made from angle, round pipe, etc.
• Different Purlins: C or Z type: Size from C120~C320, Z100~Z200
• Different Roof and Wall Panel: Single colorful corrugated steel sheet 0.326~0.8mm thick, (1150mm wide) or sandwich panel with EPS, ROCK WOOL, PU insulation thickness around 50mm~100mm
• All accessories: Semi-transparent skylight belts, ventilators, down pipe, galvanized gutter, etc.
• Surface: Two layers of Anti-Rust Paint

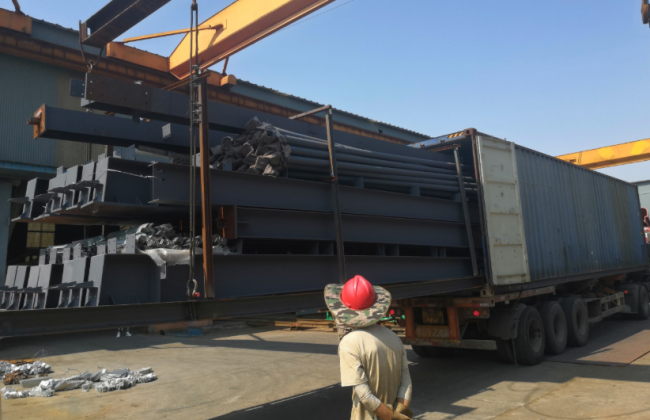

• Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ

You ONLY need to provide us with the following information:

• Live load on roof (KN/M²)
• Wind speed (KM/H)
• Snow load (KG/M²) - If Applicable
• Earthquake load - If Applicable
• Style of Doors and Windows
• Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure and min wheel pressure
• Size: width × length × eave height, roof slope
• Or your idea!

If you're unsure about what type or what needs you have regarding your warehouse/workshop, or this project is your first one, don't worry. We will teach you to choose the right style and the finest design within your budget.

• Main steel framework: H section steel with shot blasting and painting
• Roof: Steel Insulated sandwich panel & Corrugated Steel Sheet
• Wall: Steel Insulated sandwich panel & Corrugated Steel Sheet
• Window: Plastic steel window or Aluminium alloy window
• Door: Rolling door or sandwich panel sliding door
• Fasteners: Anchor bolt and nut, high-strength bolt, common bolt and nut, etc.

• Live load on roof (KN/M²)
• Wind speed (KM/H)
• Snow load (KG/M²) - If Applicable
• Earthquake load - If Applicable
• Style of Doors and Windows
• Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure and min wheel pressure
• Size: Width × length × eave height, roof slope
• Or your idea!

• Exceptional Durability: Our high-tensile steel frames are resistant to termites, fire, and corrosion.
• Rapid Deployment: Modular design allows for 30-50% faster installation.
• Custom Engineering: Tailored CAD/Tekla designs to optimize material usage.
• Eco-Friendly: Over 90% of materials are fully recyclable.

• Industrial: Logistics warehouses and manufacturing plants.
• Commercial: Shopping malls and automobile showrooms.
• Agricultural: Large-span poultry houses and grain storage.

Q1: How long does it take to deliver a steel structure building?

A: Generally, the production cycle is 30-45 days after the design is finalized. Shipping time depends on the destination port, typically ranging from 15 to 40 days.

Q2: Can your steel buildings be customized to specific local building codes?

A: Yes, our engineering team can design the structure to meet specific local wind speeds, snow loads, and seismic requirements according to international standards.

Q3: What maintenance is required for a steel structure?

A: Steel buildings require very low maintenance. Periodic inspections of the paint or galvanized coating and clearing of roof gutters are usually sufficient to ensure a lifespan of over 50 years.
