Safe Water Buoys For Hazardous Markings , Dia 1200mm Floating Boat Buoys Red And White
DESCRIPTION
Diameter: ∅1200mm
Application: Port and harbor navigation, offshore platforms, buoy marker systems, environmental monitoring, wind turbines, marine construction, and safety markers for water and marine areas.

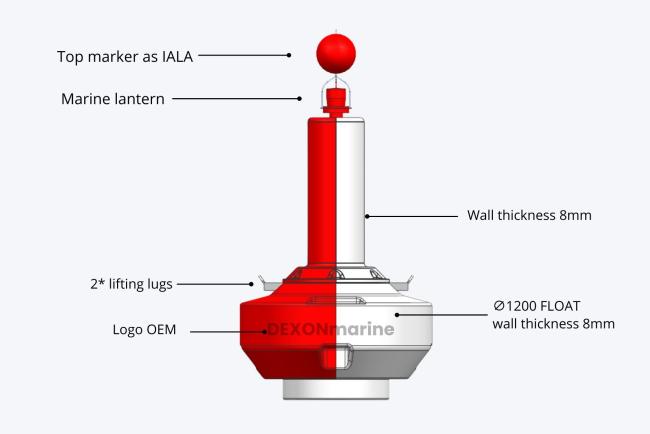

The DMF1200 Safe Water Buoys is designed for optimal performance with its compact design and is powered by Dexonmarine's latest technologies. It features a polyethylene shell, EPS foam filling, two lifting points, and one galvanized steel mooring eye for durability. The buoy includes lifting handles, cast iron ballasts, a removable mast, and a rigid PVC & Nylon topmark, making it a reliable and efficient solution for marking hazardous areas in both water and marine environments.
Optional Equipment: Radar reflectors and marine lanterns
TECHNICAL DATA
| General Characteristics | |
| Color | Red, Green, White, Yellow as per IALA Recommendations |
| Diameter | 1200mm |
| Height (no topmark) | 1755 mm |
| Material | Polyethylene |
| Filling | EPS Foam |
| Buoyancy | 400KG |
| Balance Weight | 75KG |
| Focal Plane | From 1485 mm |
| Structure, Lifting & Mooring Points | S235 galvanized steel (SS316 option available) |
| Float and Mast | UV-stabilized grade 16 Polyethylene high density. Rotational moulding |
| Ballasts | Cast Iron. Removable |
| Topmark | Rotomolded Polyethylene, PVC, and Nylon, Aluminum * |
| Eco-Friendly | Recyclable polyethylene. Heavy metal-free. No ecological damages |
| Certifications | |
| IALA | Compliant to IALA E-108 |
| Quality Assurance | ISO9001:2015 |
MORE INFORMATION
Premium Materials for Durability and Efficiency
Body Material: Constructed from LLDPE (Linear Low-Density Polyethylene) for enhanced strength and flexibility.
Internal Filling: EPS (Expanded Polystyrene) bleb ensures optimal buoyancy and insulation.
Mooring Points: Galvanized steel used for robust mooring, designed to withstand harsh marine environments.
Topmark: Crafted from rigid PVC & Nylon for maximum durability.
Eco-friendly: Made from 100% recyclable polyethylene, free from heavy metals, and safe for the environment.
Optimized Floating and Stability Features
Buoyancy: The buoy's floating characteristics are adapted to local water conditions such as salinity and current flow.
Adjustable Balance Weight: Optional balance weights can be added, enabling precise stability adjustments based on specific water conditions and environmental factors.
Mooring Chain: Customized mooring chains to perfectly match the client's environmental requirements, ensuring secure positioning.
Recommended Lanterns for Enhanced Visibility
All buoys are equipped with Dexonmarine's LED self-contained lanterns, ensuring high visibility and energy efficiency.
Available in a variety of colors: Red, Green, White, and Yellow, tailored to meet the needs of your project and local regulations.

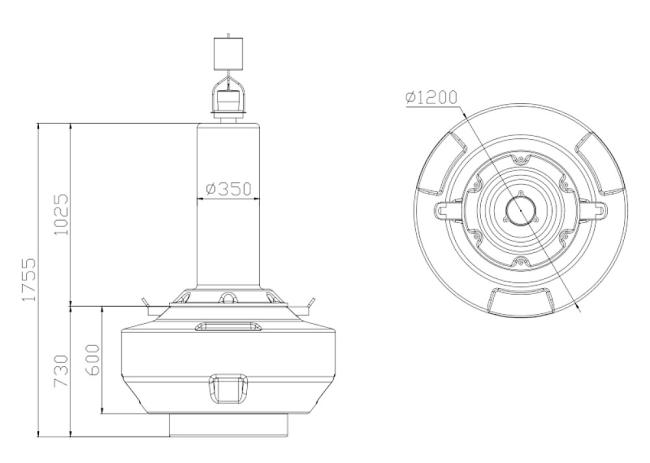

DRAWING(mm)
