1200mm Dia Marine Navigation Buoy Isolated Danger Mark Buoy With Polyethylene Shell
The Dexonmarine DMF1200 Isolated Danger Marine Buoy is a 1200mm diameter navigation buoy designed for challenging environments. It is ideal for rivers, ports, harbors, and estuaries with water currents flowing up to 4 knots.
Diameter: ∅1200mm
Application: Port and harbor navigation, offshore platforms, buoy marker systems, environmental monitoring, wind turbines, marine construction, and safety markers for water and marine areas.
For marking isolated danger areas, the DMF1200 Isolated Danger Marine Buoy offers exceptional performance in a compact design. Dexonmarine's innovative technology is employed in the design of the buoy, which is constructed with a sturdy polyethylene shell, an EPS foam core, and two lifting points with a galvanized steel mooring eye. It also includes lifting handles, cast iron ballasts, a removable mast, and a rigid topmark for effective and long-lasting hazard marking.
Optional Equipment: Radar reflectors and marine lanterns
TECHNICAL DATA
| General Characteristics | |
| Color | Red, Green, White, Yellow as per IALA Recommendations |
| Diameter | 1200mm |
| Height (no topmark) | 1755 mm |
| Material | Polyethylene |
| Filling | EPS Foam |
| Buoyancy | 400KG |
| Balance Weight | 75KG |
| Focal Plane | From 1485 mm |
| Structure, Lifting & Mooring Points | S235 galvanized steel (SS316 option available) |
| Float and Mast | UV-stabilized grade 16 Polyethylene high density. Rotational moulding |
| Ballasts | Cast Iron. Removable |
| Topmark | Rotomolded Polyethylene, PVC, and Nylon, Aluminum * |
| Eco-Friendly | Recyclable polyethylene. Heavy metal-free. No ecological damages |
| Certifications | |
| IALA | Compliant to IALA E-108 |
| Quality Assurance | ISO9001:2015 |
MORE INFORMATION
SUPERIOR MATERIALS FOR MAXIMUM RELIABILITY
Body Material: Made from LLDPE, ensuring high resistance to damage from weather and saltwater.
Filling: EPS foam provides reliable buoyancy, keeping the buoy afloat.
Mooring Points: Galvanized steel ensures secure anchoring and long-term durability.
Constructed from rigid PVC & Nylon for improved visibility and strength.
Eco-Friendly: Recyclable polyethylene, heavy metal-free, making it a safe choice for the environment.
BUOYANCY AND STABILITY FEATURES FOR YOUR NEEDS
Optimized Buoyancy: The buoy’s buoyancy is adaptable to changing water conditions like salinity and flow.
Balance Weight Options: Balance weights are optional to help adjust the buoy’s stability based on specific environmental needs.
Customizable Mooring Chain: The mooring chain can be customized to meet your environment’s specific requirements, ensuring stability.
CHOICE OF LIGHTING OPTIONS
Dexonmarine's LED self-contained lanterns are used for all models, ensuring long-term illumination and low maintenance.

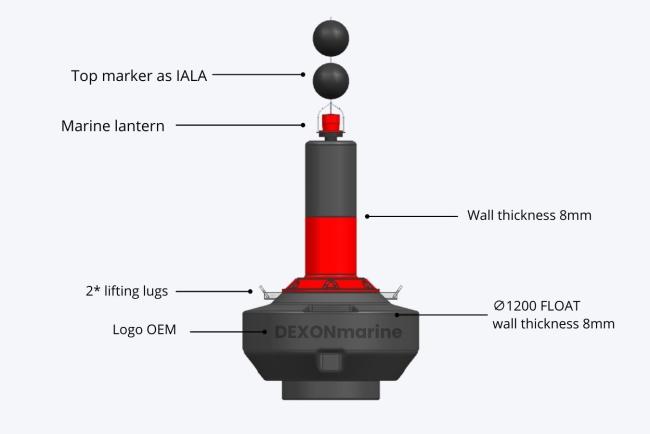

DRAWING(mm)
