IP68 Waterproof Marine Radar Beacon Dual Band Compatible For Navigation Safety

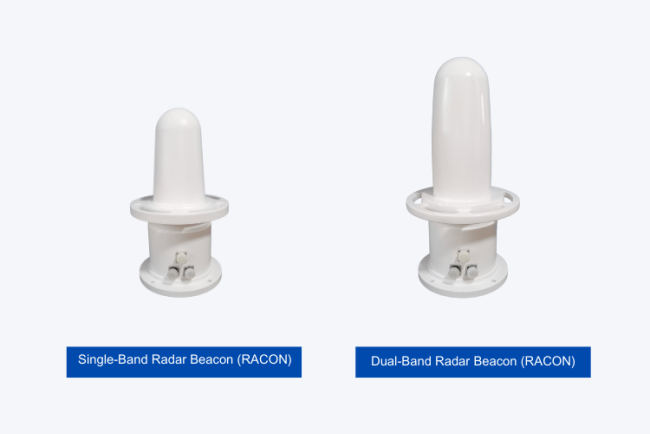

High-Performance Marine Radar Beacon (RACON) – Single & Dual Band | DX-RACON-01 Series | Up to 20NM Range, IMO & IALA Compliant
Clarity on Every Radar. Compliance in Every Port.
DX-RACON-01 is a high-performance radar transponder (RACON) designed to enhance marine navigation safety.
Upon receiving a radar signal from a nearby vessel, it instantly responds with a frequency-agile Morse code — marking its position on the ship’s radar.
Whether installed on bridge towers, navigation buoys, or offshore platforms, it ensures you're unmistakably visible on any radar display.
KEY ADVANTAGES
- 20NM Radar Visibility
Solid-state transceiver and tuned antenna deliver unmatched long-range signal return. - Dual-Band Compatible
Optional support for both X-band and S-band ensures full radar compatibility. - Real-Time Monitoring
Connects to AIS or BeiDou terminals for live status visibility, remote fault detection. - Weatherproof & Marine-Hardened
Operates 24/7 in extreme temperatures, salt fog, and shock-prone environments. - Morse Code Precision
Frequency-agile response matches vessel radar pulse for accurate target display. - Smart Integration Ready
Compatible with national e-Navigation platforms and third-party control systems.
TECHNICAL DATA
| Specification | DX-RACON-01-X / DX-RACON-01-X/S |
| Power Supply | 9–36VDC |
| Frequency Range | X-Band: 9300–9500 MHzS-Band: 2900–3100 MHz |
| Transmit Power | ≥1.5W |
| Frequency Accuracy | Wide Pulse: ±1 MHzNarrow Pulse: ±2 MHz |
| Receiver Sensitivity | 0 to –50 dBm (optional) |
| Sidelobe Suppression | 24–27 dBm |
| Max Response Delay | 500 ns |
| Max Reply Rate | 10 kHz |
| Antenna Polarization | Horizontal |
| Antenna Gain | Omnidirectional: 8 dBDirectional: 15 dB (45°), 13 dB (90°), 10 dB (180°) |
| Average Power | ≤3W (typical use) |
| Operating Temperature | –40°C to +70°C |
| Dimensions | Single-band: 300×450mmDual-band: 300×600mm |
| Mounting Size | Ø240mm / 4 × M10 |
| Weight | Single-band: 9kg Dual-band: 11kg |
| AIS Terminal | Optional external connection |
Applications
- Channel turning marks and fairway delineation
- Warning of isolated hazards or exclusion zones
- Bridge span indicators, coastal route marks, and leading lines
- Long-range position indication for marine radar systems
Compliance
- IALA Recommendation A-126
- IMO MSC.192(79)
- ITU-R M.824-3
Optional Accessories: External AIS transmitter, GPS synchronization modules, custom mounting brackets available on request.
OEM Branding & Custom Configurations: Supported for large-scale infrastructure projects and national tenders.
Trust Signals:
✓ 10+ Years Marine Product Experience
✓ IALA Member Manufacturer
✓ Exported to 30+ Countries
