Class B DSC VHF Marine Radio With Integrated GPS Positioning, Channel 70 Watch Keeping And MOB Alert Reception.
The DX-VHF-DSC100 is a fixed-mount Class B DSC VHF marine radio engineered for commercial vessels, workboats, fishing fleets and harbor service operations.

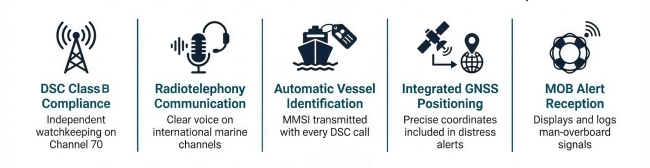

Designed for permanent onboard installation, it ensures:
-
Instant digital selective calling
-
Automatic vessel identification via MMSI
-
Precise GPS position transmission
-
Clear radiotelephony voice communication
- Digital calling without delay
- Automatic identification every time
- Position included in every critical message
- Immediate distress access
- Built for real bridge environments
| Key Indicator | Specification |
|---|---|
| DSC Standard | ITU-R M.493-13 Compliant |
| Channel 70 Watch | Continuous |
| Transmission Power | 25W / 1W Selectable |
| Frequency Range | 156.025–163.275 MHz |
| GPS Integration | Built-in Position Display |
| MMSI Transmission | Automatic in DSC Calls |
| Distress Function | Protected Red Key |
| MOB Reception | Supported |
| Power Supply | DC 12V (±30%) |

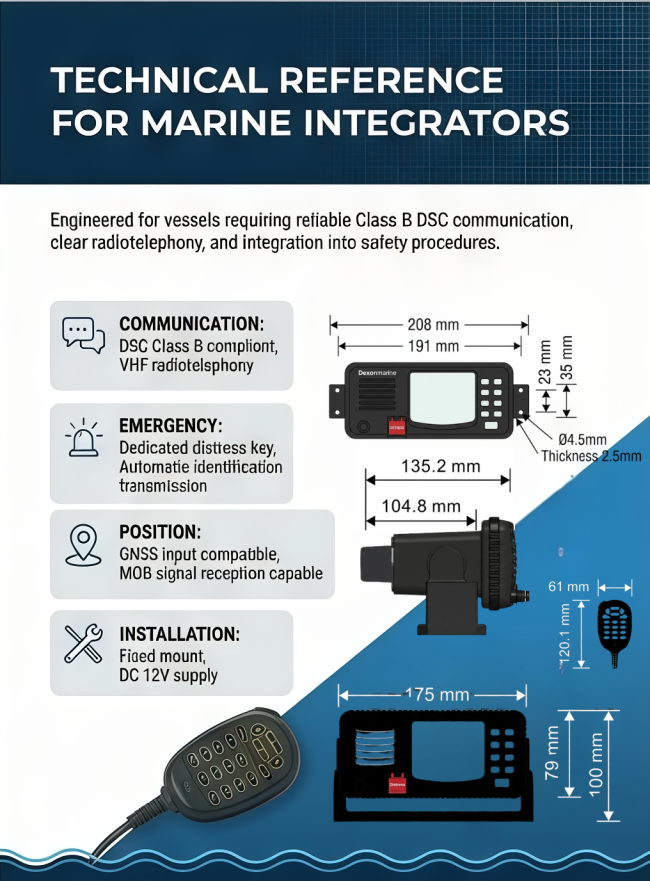

| Installation | Fixed Bridge Mount |
Traditional voice communication may:
- Be missed due to noise
- Cause delays in channel congestion
- Lack automatic position data
DSC ensures:
- Direct digital calling
- Automatic vessel identification
- Precise location delivery
- Faster emergency response
- sition indication for marine radar systems
BUILT FOR PROFESSIONAL MARITIME OPERATIONS
Class D DSC Marine Radio with Integrated GNSS & MOB Reception![]()
FAQ
A fixed-mount marine radio equipped with Digital Selective Calling and Channel 70 watchkeeping.
Yes, MMSI is automatically transmitted with every DSC call.
Yes, the unit can receive and display MOB distress signals.
Yes, GPS data is displayed and transmitted digitally.
Yes, designed for professional bridge installation.
Yes, independent Channel 70 watchkeeping.
DC 12V (±30%).
Yes, with a safety cover to prevent accidental activation.
Yes, 25W or 1W selectable.
Yes, ITU-R M.493-13 compliant.
