Control Radius 100kn Industrial Small Stealth UAV Target 4 Aircraft Formation Highest Flight 10km

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: Negotiable

Product Description

Ⅰ. Product Overview

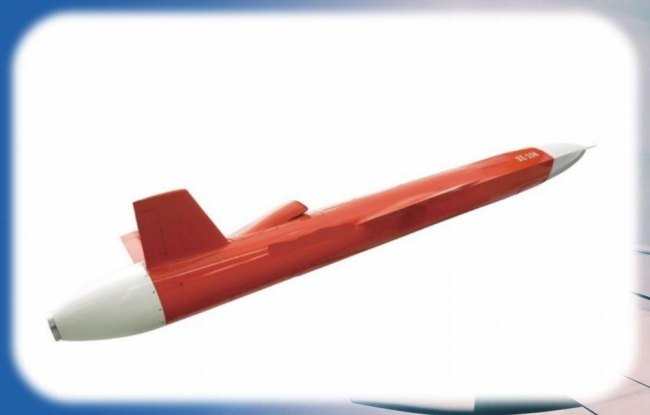

The BG-101 is a 65 kg turbojet-powered target that mimics third or fourth-generation fighters and cruise missiles for gunnery and missile training. Forward radar cross-section is below 0.01 m².

Ⅱ. Key Features

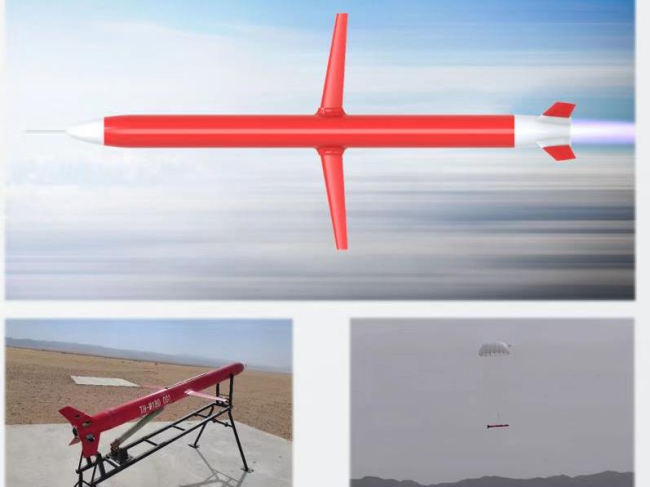

- Rocket-assisted take-off and parachute recovery; no runway needed

- Maximum speed 150 m/s; cruise 120-150 m/s

- One ground station controls four aircraft; programmable multi-directional attack profiles

- Internal payload bay 0.05 m³ for flares, chaff, jammers or seeker simulators

Ⅲ. Customer Benefits

Reusable for > 50 sorties; 100 km control radius; seven-grade wind tolerance; maintenance interval 25 flight hours.

Ⅳ. Technical Data

project	parameter values
Wingspan	1.4 m
Fuselage length	2.8 m
All-up weight	65 kg
Payload capacity	10 kg
Flight duration	40 min
Flight altitude	10-10000m
Maximum speed	150 m/s
Cruise speed	120 – 150 m/s
Take-off/Recovery	rocket assist/ parachute
Control radius	100 km
Formation	one station to four drones
Rain limit	light rain
Wind limit	Level 7
