Ⅰ. Product Overview

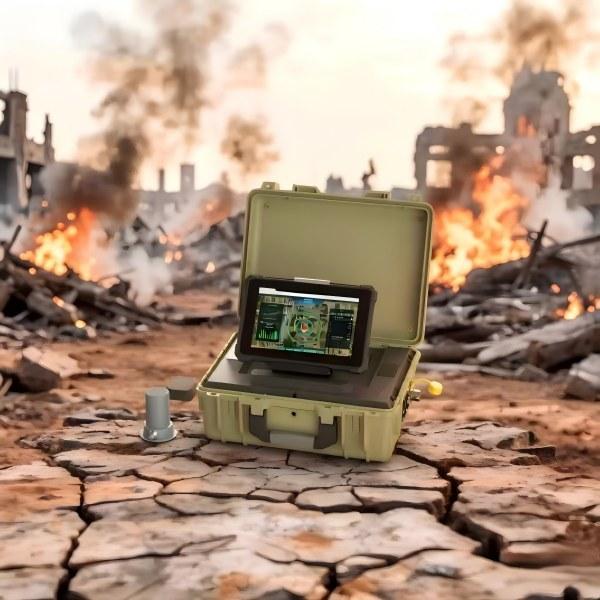

The Portable Navigation Deception Device is a portable navigation deception device featuring a handheld design that enables precise spoofing and control of drone navigation signals. Supporting multiple frequency bands including GPS and GLONASS, the device offers both defensive and disengagement operation modes. It is widely used for low-altitude protection of critical facilities, temporary security deployments, and special mission support.

Ⅱ. Product Core Features

1. Multi-Band Signal Generation, Precision Deception

Standard configuration supports GPS L1 and GLONASS G1 frequency bands, with customizable options for BDS B1 and GALILEO E1. With signal transmission power <10dB and intrusion response time ≤10s, the device rapidly establishes effective protection zones

2. Two Operation Modes, Flexible Response

· Defense Mode: Creates virtual no-fly zones over target areas, preventing drone intrusion

· Disengagement Mode: Guides invading drones away from protected targets by altering their navigation paths

3. Adjustable Range, Adaptable to Multiple Scenarios

Standard operational range of 500-1000m (line-of-sight conditions) can be customized based on user requirements to meet different protection levels

4. 24-Hour Autonomous Operation, Unattended

The device supports 24 hours of continuous autonomous operation, requiring no manual intervention after deployment—ideal for long-duration protection missions

5. Industrial-Grade Design, Strong Environmental Adaptability

Operating temperature range from -20℃ to +55℃ with explosion-proof rating of Ex d IIC T6 Gb, suitable for hazardous environments such as oil fields and chemical plants, as well as various outdoor harsh conditions

6. Portable Handheld Design, Ready for Action

Total weight ≤10kg with a handheld structure allows single-person deployment. Supports battery power and hot-swap capability, meeting mobile operational requirements

Ⅲ. Application Scenarios

1. Critical Target Low-Altitude Protection: Active drone defense for sensitive areas including nuclear power plants, oil depots, and government facilities

2. Temporary Event Site Security: Low-altitude security control for large conferences, sports events, and celebrations

3. Special Mission Escort Protection: Accompanying protection for VIP movements and convoy operations

4. Critical Infrastructure Patrol Protection: Routine drone defense for power facilities and communication base stations

Ⅴ. Technical Parameters

Item	Specification
Navigation Deception Unit
Supported Frequency Bands	Standard: GPS L1, GLONASS G1 Customizable: BDS B1, GALILEO E1
Signal Transmission Power	<10dB
Operational Range	500-1000m (customizable)
Continuous Autonomous Operation	24h
Strategy Support	Defense Mode / Disengagement Mode
Signal Intrusion Time	≤10s
Overall Parameters
Power Consumption	≤30W
Explosion-Proof Rating	Ex d IIC T6 Gb
Power Supply	Battery powered, supports hot-swap
Operating Temperature	-20℃ ~ +55℃
Total Weight	≤10kg
Dimensions	430×345×188mm ±5mm (excluding antenna)
